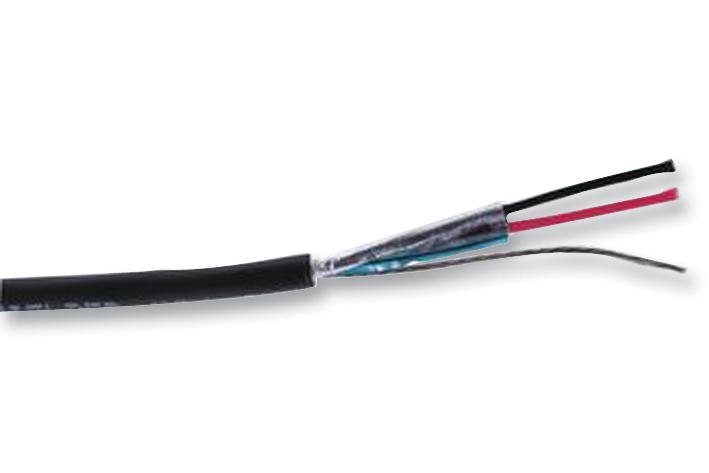

BELDEN - 1508A B591000 - Multipair Cable, Audio Control, Screened, 1 Pair, 24 AWG, 1000 ft, 304.8 m
- Cable Shielding: Screened
- No. of Pairs: 1 Pair
- Wire Gauge: 24AWG
- Conductor Area CSA: -
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 304.8m
- Jacket Colour: Black
- No. of Max Strands x Strand Size: 7 x 0.2mm
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 3.327mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Cable Type: Foil Shield
- Complex Cable Make-Up: 2 x 7/32
- Conductor Make-up: 7 / 32AWG
- Current Rating: 1.05A
- Impedance: 50ohm
- No. of Cores: 2Core
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Outer Diameter: 3.33mm
- Secondary Insulation Material: PVC
- Velocity of Propagation (%): 66%
- Wire Size: 24AWG
