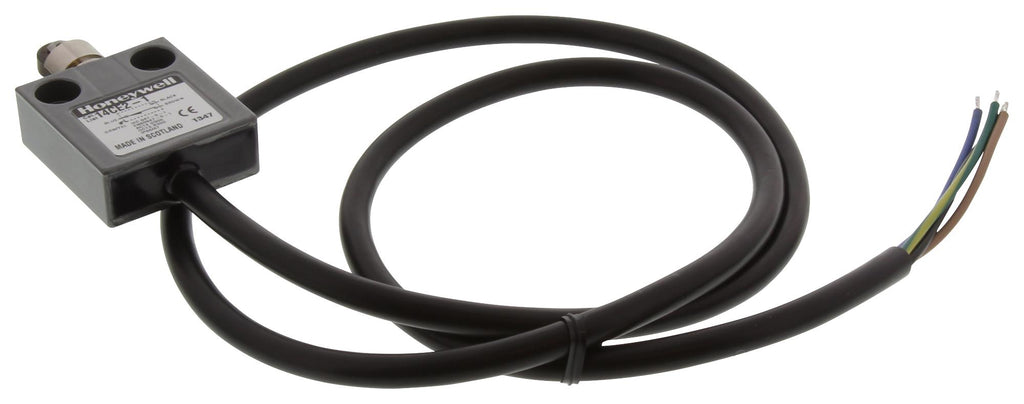

14CE2-1 Limit Switch, In Line Roller Honeywell

HONEYWELLUGS :14CE2-1 Code de commande:178491

Prix:
Prix ​​promotionnel€220,11

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (10 unité)

Documents et téléchargements

description

HONEYWELL - 14CE2-1 - Limit Switch, Top Roller Plunger, SPDT, 3 A, 240 V, 11.8 N, 14CE

  • Limit Switch Actuator: Top Roller Plunger
  • Contact Configuration: SPDT
  • Contact Current AC Max: 3A
  • Contact Voltage AC Max: 240V
  • Operating Force Max: 11.8N
  • Product Range: 14CE Series
  • Contact Current DC Max: 3A
  • Contact Voltage DC Max: 28V
  • SVHC: No SVHC (07-Jul-2017)
  • Actuator Type: Roller Plunger
  • Contact Current Rating: 5A
  • External Depth: 16mm
  • External Length / Height: 44.3mm
  • External Width: 40mm
  • Fixing Centres: 25mm
  • IP / NEMA Rating: IP65
  • No. of Electrical Operations: 60000
  • No. of Mechanical Operations: 5000000
  • Operating Position: 28.5
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: 0°C
  • Pre-travel: 1.8mm
  • Switch Terminals: Quick Connect
  • Thermal Current Rating: 5A
