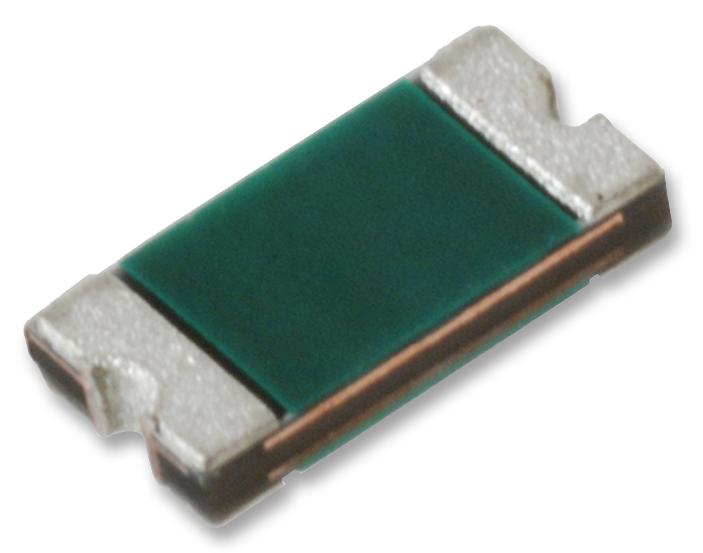

LITTELFUSE - 1206L035YR - Resettable Fuse, PPTC, 1206 (3216 Metric), POLYFUSE 1206L, 6 VDC, 350 mA, 750 mA, 0.1 s
- Thermistor Mounting: SMD
- Product Range: POLYFUSE 1206L Series
- Holding Current: 350mA
- Tripping Current: 750mA
- Voltage Rating: 6VDC
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- Approval Bodies: TUV
- Approval Category: UL Recognised
- Carrying Current Max: 100A
- Current Max: 100A
- External Depth: 1.8mm
- External Length / Height: 0.75mm
- External Width: 3.4mm
- Holding Current Max Ih: 0.35mA
- Initial Resistance Max: 1.2ohm
- Initial Resistance Min: 0.3ohm
- Operating Voltage: 6V
- PTC Fuse Case Style: 1206 [3216 Metric]
- Power Dissipation Pd: 0.6W
- Resistance: 0.75ohm
- Termination Type: Surface Mount Device
- Thermistor Type: PTC
