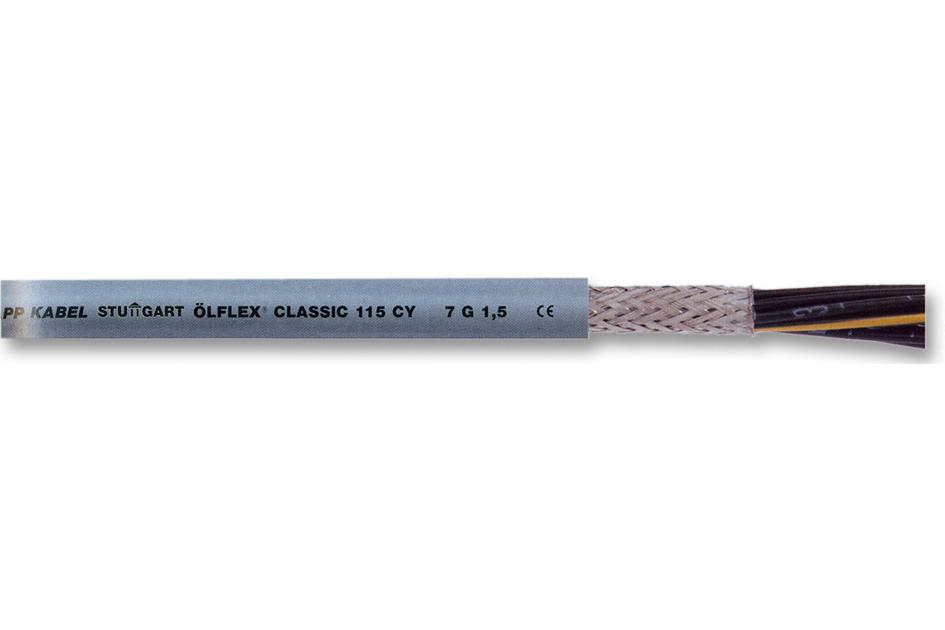

LAPP KABEL - 1136303 100M - Multicore Cable, Ölflex® CY, Screened, 3 Core, 16 AWG, 1.5 mm², 328 ft, 100 m
- Cable Shielding: Screened
- No. of Cores: 3Core
- Wire Gauge: 16AWG
- Conductor Area CSA: 1.5mm²
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 30 x 0.25mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 7.5mm
- Voltage Rating: 500V
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Bend Radius Min: 20mm
- Cable Type: CY
- Conductor Make-up: 30 / 0.25mm
- Core-Earth / Core-Core Voltage Rating: 300/500
- Current Rating: 16A
- Flexing Temperature Max: 70°C
- Flexing Temperature Min: -5°C
- Installed Bend Radius Min: 6
- Insulation Resistance: 20Gohm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -30°C
- Outer Diameter: 7.5mm
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Shield Material: Tinned Copper
- Shield Type: Tinned Copper Braid
- Test Voltage: 4000V
