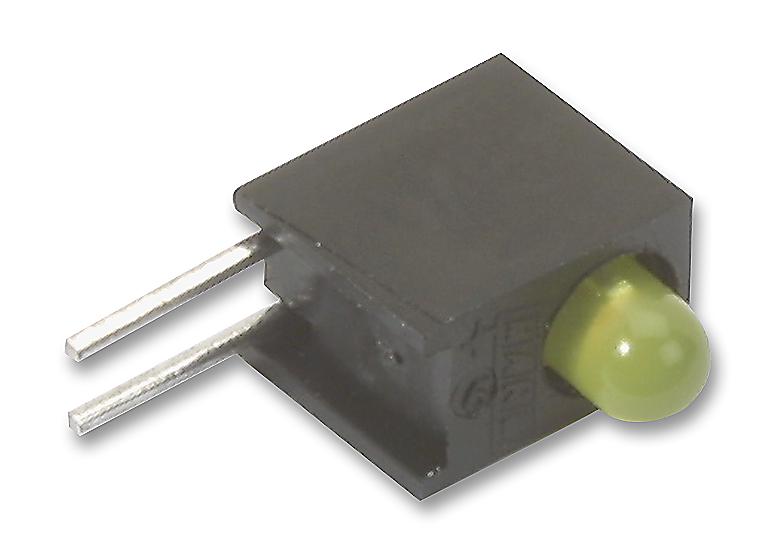

MARL - 113-311-04 - Circuit Board Indicator, Yellow, 1 LEDs, Through Hole, T-1 (3mm), 20 mA, 20 mcd
- LED Colour: Yellow
- No. of LEDs: 1LEDs
- LED Mounting: Through Hole
- Bulb Size: T-1 (3mm)
- Forward Current If: 20mA
- Luminous Intensity: 20mcd
- Forward Voltage: 2.1V
- Viewing Angle: -
- Height: 7.3mm
- Width: 37mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Current If Luminous Intensity: 20mA
- Display Size: 6.3mm x 8.3mm
- External Depth: 6.3mm
- External Length / Height: 8.3mm
- External Width: 4.6mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.2V
- LED / Lamp Size: 3mm / T-1
- LED Configuration: Array
- LED Type: Standard
- Lead Cross-section Depth: 0.5mm
- Lead Cross-section Width: 0.5mm
- Lead Length: 5mm
- Lead Spacing: 2.54mm
- Lens Shape: Round
- Luminous Intensity Typ: 20mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +80°C
- PIV Max: 5V
- Peak Forward Current: 30mA
- Peak Wavelength: 590nm
- Voltage Vf Typ: 2.2V
- Wavelength Typ: 590nm
