113-305-01 LED, Pcb, 3mm, Red Marl

MARLUGS :113-305-01 Code de commande:9739220

Prix:
Prix ​​promotionnel€3,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1064 unité)

Documents et téléchargements

description

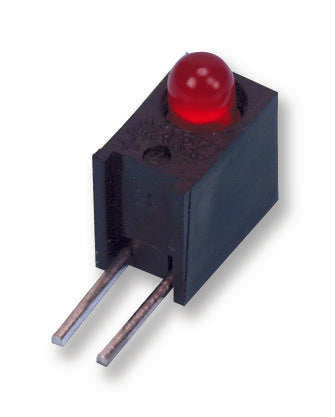

MARL - 113-305-01 - Circuit Board Indicator, Red, 1 LEDs, Through Hole, T-1 (3mm), 2 mA, 35 mcd

  • LED Colour: Red
  • No. of LEDs: 1LEDs
  • LED Mounting: Through Hole
  • Bulb Size: T-1 (3mm)
  • Forward Current If: 2mA
  • Luminous Intensity: 35mcd
  • Forward Voltage: 2V
  • Viewing Angle: -
  • Height: 7.3mm
  • Width: 37mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Current If Luminous Intensity: 2mA
  • Display Size: 6.3mm x 8.3mm
  • External Depth: 6.3mm
  • External Length / Height: 8.3mm
  • External Width: 4.6mm
  • Forward Current If Max: 2mA
  • Forward Voltage VF Max: 1.9V
  • LED / Lamp Size: 3mm / T-1
  • LED Configuration: Array
  • LED Type: Standard
  • Lead Cross-section Depth: 0.5mm
  • Lead Cross-section Width: 0.5mm
  • Lead Length: 5mm
  • Lead Spacing: 2.54mm
  • Lens Shape: Round
  • Luminous Intensity Typ: 3.5mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +80°C
  • PIV Max: 5V
  • Peak Wavelength: 625nm
  • Voltage Vf Typ: 1.9V
  • Wavelength Typ: 625nm
