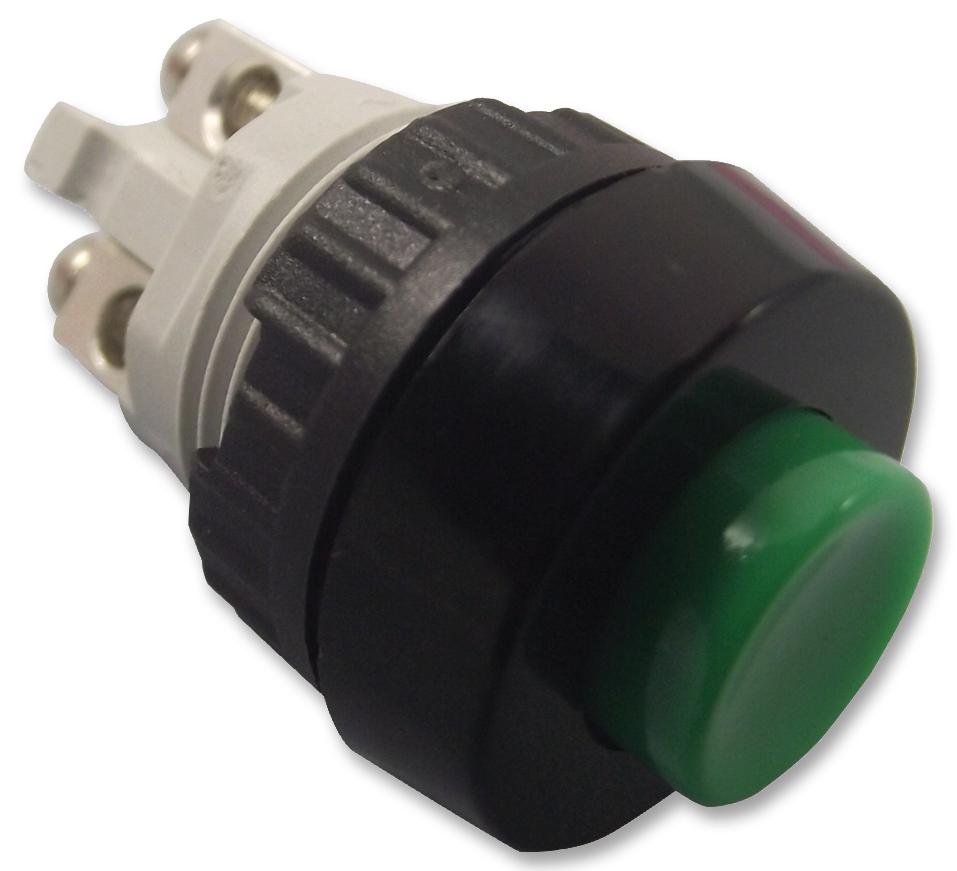

1.10.001.001/0507 Switch, Pushbutton, Mom, Opaque, Green Rafi

RAFIUGS :1.10.001.001/0507 Code de commande:9927387

Prix:
Prix ​​promotionnel€16,66

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (159 unité)

Documents et téléchargements

description

RAFI - 1.10.001.001/0507 - Pushbutton Switch, 15.2 mm, SPST-NO, Off-(On), Round, Green

  • Switch Operation: Off-(On)
  • Contact Configuration: SPST-NO
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: -
  • Contact Current Max: 700mA
  • Switch Terminals: Screw
  • Product Range: -
  • Actuator / Cap Colour: Green
  • Colour: opaque green
  • Contact Current AC Max: 700mA
  • Contact Voltage VAC: 250V
  • External Depth: 21.5mm
  • External Length / Height: 8.2mm
  • IP Rating: IP40
  • Illumination Colour: Non-illuminated
  • No. of Electrical Operations: 25000
  • No. of Mechanical Operations: 25000
  • Operating Force: 7.5N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Panel Cutout Diameter: 15.2mm
  • Pushbutton Actuator Style: Round
  • Pushbutton Switch Type: Standard
  • Switch Mounting: Panel
