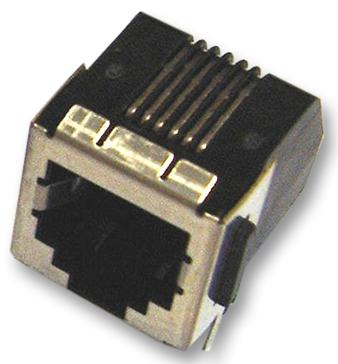

AMP - TE CONNECTIVITY - 106066-2 - Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat3, Through Hole Mount
- Modular Connector Type: RJ45 Jack
- Port Configuration: 1 x 1 Port
- No. of Positions / Loaded Contacts (per Port): 8P8C
- LAN Category: Cat3
- IP Rating: -
- Connector Mounting: Through Hole Mount
- Connector Orientation: Right Angle
- Shielding: Shielded
- Magnetics: Without Magnetics
- LEDs: Without LED
- Light Pipes: Without Light Pipe
- Product Range: PRC Series
- SVHC: No SVHC (27-Jun-2018)
- Body Plating: Tin
- Colour: Black
- Connector Type: RJ45
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Contact Termination: Through Hole Right Angle
- Contact Termination Type: Through Hole
- Current Rating: 1.5A
- External Depth: 19.1mm
- External Length / Height: 12.05mm
- External Width: 16.5mm
- Flammability Rating: UL94V-0
- Gender: Jack
- Material: Polyester
- No. of Contacts: 8Contacts
- No. of Mating Cycles: 750
- No. of Ports: 1Ports
- No. of Positions: 8Ways
- Voltage Rating VAC: 150V
