103-383-20 LED, Pcb, 3mm, 5V, Green Marl

MARLUGS :103-383-20 Code de commande:9738355

Prix:
Prix ​​promotionnel€5,97

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (183 unité)

Documents et téléchargements

description

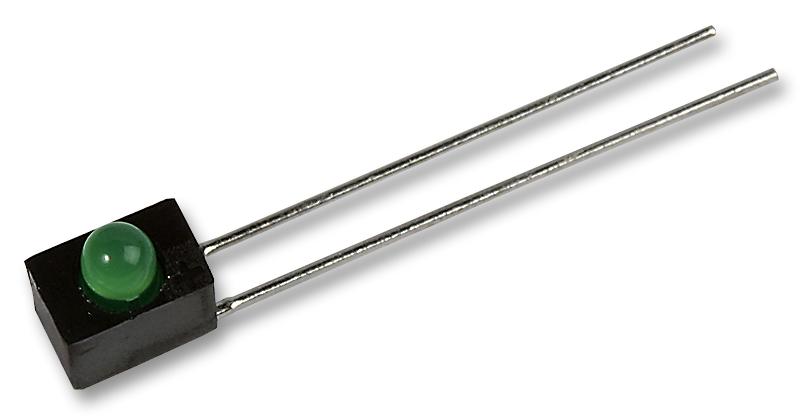

MARL - 103-383-20 - Circuit Board Indicator, Green, 1 LEDs, Through Hole, T-1 (3mm), 10 mA, 20 mcd

  • LED Colour: Green
  • No. of LEDs: 1LEDs
  • LED Mounting: Through Hole
  • Bulb Size: T-1 (3mm)
  • Forward Current If: 10mA
  • Luminous Intensity: 20mcd
  • Forward Voltage: 5V
  • Viewing Angle: 60°
  • Height: 6.2mm
  • Width: 4mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 5.2mm
  • External Length / Height: 6.2mm
  • External Width: 4mm
  • Forward Current If Max: 10mA
  • Forward Voltage VF Max: 5V
  • LED / Lamp Size: 3mm / T-1
  • LED Type: Standard
  • Lead Cross-section Depth: 0.5mm
  • Lead Cross-section Width: 0.5mm
  • Lead Length: 21mm
  • Lens Shape: Round
  • Luminous Intensity Typ: 8mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Forward Current: 10mA
  • Peak Wavelength: 656nm
  • Pitch Spacing: 2.54mm
  • Supply Voltage: 5V
  • Voltage Vf Typ: 5VDC
  • Wavelength Typ: 565nm
