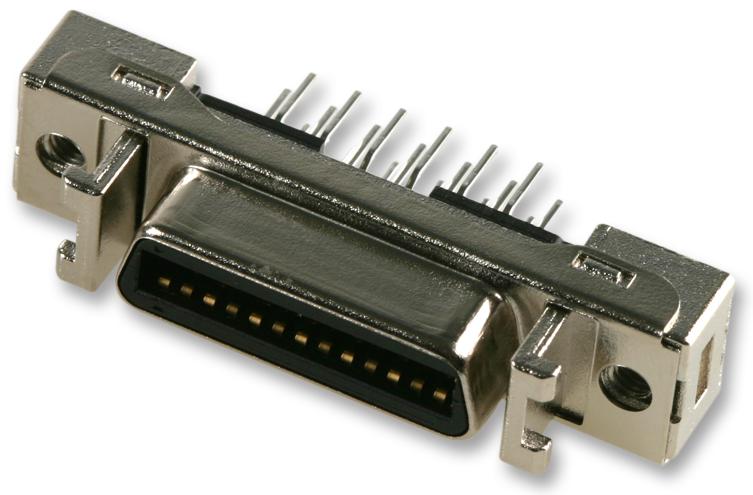

3M - 10250-6212PL - D Sub Connector, Straight, Mini D (Ribbon Connector), Receptacle, MDR 102, 50 Contacts, Solder
- No. of Contacts: 50Contacts
- Gender: Receptacle
- Product Range: MDR 102 Series
- Contact Termination Type: Solder
- Connector Mounting: Through Hole Mount
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper Alloy
- SVHC: No SVHC (15-Jan-2018)
- Colour: Black
- Connector Body Material: Steel Body
- Connector Mounting Orientation: PC Board
- Connector Type: Micro D Ribbon
- Contact Termination: Through Hole Vertical
- Current Rating: 1A
- D Sub Connector Type: Mini D (Ribbon Connector)
- Flammability Rating: UL94V-0
- Insulation Resistance: 500Mohm
- Material: Steel
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Pitch Spacing: 1.27mm
- Termination Method: Solder
- Withstand Voltage: 500V
