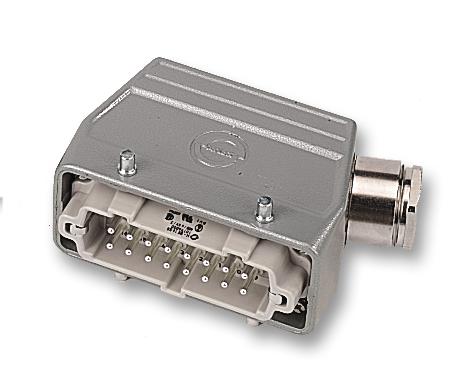

EPIC - 10.0820+10.1940+12.9545 - Heavy Duty Connector, Side Entry, EPIC HBE Series, Panel Mount, Plug, 16 Contacts, Pin, 2 Rows
- Product Range: EPIC HBE Series
- Connector Mounting: Panel Mount
- Gender: Plug
- No. of Contacts: 16Contacts
- Contact Gender: Pin
- No. of Rows: 2Rows
- Contact Termination Type: Screw
- Connector Shell Size: -
- Contact Material: Copper
- Contact Plating: Silver Plated Contacts
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL, VDE
- Connector Type: Rectangular Power
- Contact Resistance: 2mohm
- Contact Termination: Screw
- Current Rating: 16A
- IP / NEMA Rating: IP65
- No. of Mating Cycles: 100
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Termination Method: Screw
- Voltage Rating VAC: 400V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.5mm²
- Working Voltage: 400V
