1-66504-0 Crimp Socket, 24-20AWG Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :1-66504-0 Code de commande:593254

Prix:
Prix ​​promotionnel€0,48

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (43387 unité)

Documents et téléchargements

description

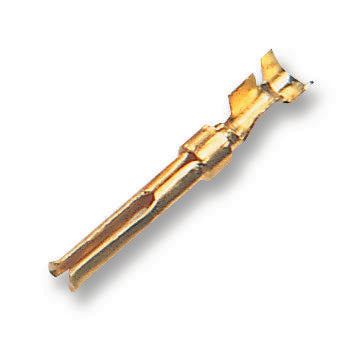

AMP - TE CONNECTIVITY - 1-66504-0 - D Sub Contact, HDP-20 Series Connectors, Socket, Brass, Gold Plated Contacts, 20 AWG, 24 AWG

  • For Use With: HDP-20 Series Connectors
  • Contact Gender: Socket
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Wire Size AWG Max: 20AWG
  • Wire Size AWG Min: 24AWG
  • Contact Termination Type: Crimp
  • Product Range: AMPLIMITE HDP-20 Series
  • SVHC: No SVHC (15-Jan-2018)
  • Cable Diameter Max: 1.52mm
  • Cable Diameter Min: 1.27mm
  • Contact Resistance: 15mohm
  • Contact Termination: Crimp
  • Contact Type: Stamped
  • Current Rating: 7.5A
  • Gender: Receptacle
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • Wire Area Size Max: 0.52m²
  • Wire Area Size Min: 0.2m²
  • Wire Size: 20AWG
  • Wire Size (AWG): 24AWG to 20AWG
