Description

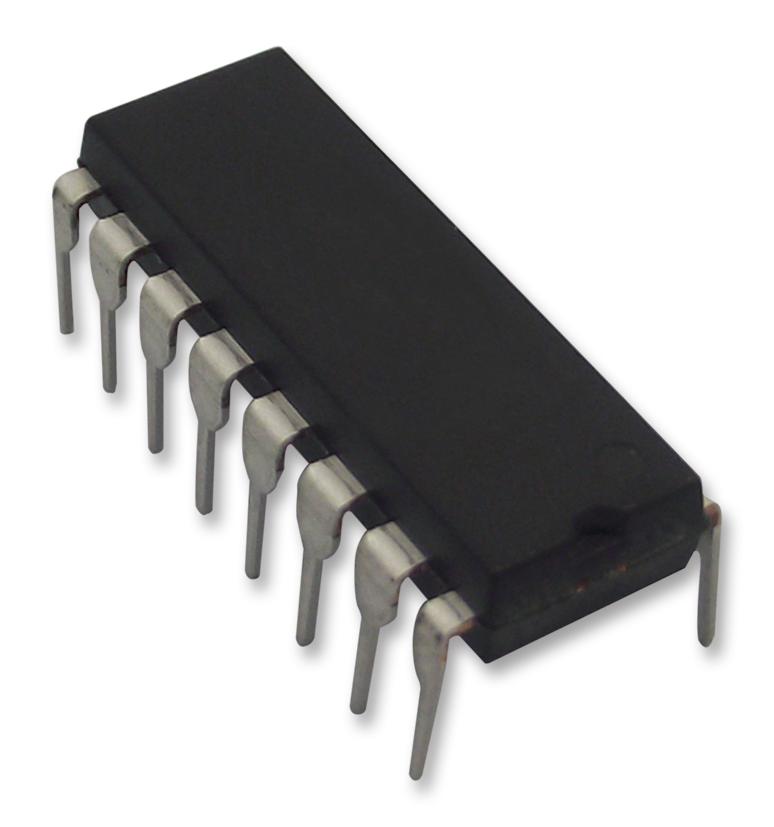

STMICROELECTRONICS - SG3525AN - PWM Controller Dual, 35V-8V supply, 400 kHz, 5.1V/500mA out, DIP-16
- Input Voltage: 35V
- Output Voltage: 5.1V
- Output Current: 500mA
- Supply Voltage Min: 8V
- Supply Voltage Max: 35V
- Controller IC Case Style: DIP
- No. of Pins: 16Pins
- Frequency: 400kHz
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Base Number: 3525
- Device Marking: SG3525AN
- IC Generic Number: 3525
- IC Temperature Range: Commercial
- Input Voltage: 35V
- Logic Function Number: 3525
- No. of Outputs: 2Outputs
- Operating Temperature Range: 0°C to +70°C
- Output Current Max: 0.5A
- Output Voltage Max: 5.2V
- Output Voltage Min: 5V
- Power Supply IC Type: PWM controller
- Primary Input Voltage: 35V
