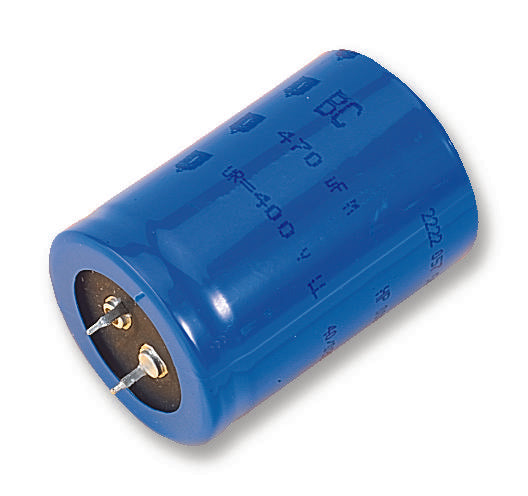

MAL205757331E3 Cap, 330µF, 450V, Alu Elec, Snap In Vishay

VISHAYSKU: MAL205757331E3 Order code: 1165600

Price:
Sale price€36,64

Tax included Shipping calculated at checkout

Stock:
In stock (514 units), ready to be shipped

Documents et téléchargements

Description

VISHAY - MAL205757331E3 - Electrolytic Capacitor, Long Life, 330 µF, 450 V, ± 20%, Quick Connect, Snap-In, 12000 hours @ 85°C

  • Capacitance: 330µF
  • Voltage Rating: 450V
  • Product Range: 057 PSM Series
  • Lifetime @ Temperature: 12000 hours @ 85°C
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Quick Connect, Snap-In
  • Diameter: 35mm
  • Lead Spacing: 10mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Height: 50mm
  • ESR: 0.7ohm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • AC Ripple Current @ 100Hz: 1.26A
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Mounting: Through Hole
  • Climatic Category: 40/085/56
  • ESR Frequency: 100Hz
  • ESR Temperature: 20°C
  • External Length / Height: 50mm
  • Frequency Tolerance: 100Hz
  • Leakage Current: 301µA
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Operating life Time: 12000h
  • PCB Hole Diameter: 2mm
  • Ripple Current AC: 1.26A
  • Ripple Current Frequency: 100Hz
  • Ripple Current Temperature: 85°C
  • Tolerance +: 0.2%
  • Tolerance -: 0.2%
  • Voltage Rating DC Max: 450V
  • Voltage Rating V DC: 450V
