Description
- Logic Family / Base Number: CD4047
- Multivibrator Type: Monostable / Astable
- Output Current: 6.8mA
- Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- Logic Case Style: DIP
- No. of Pins: 14Pins
- Propagation Delay: 125ns
- Logic IC Family: CD4000
- Logic IC Base Number: 4047
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Product Range: CD4000 LOGIC Series
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 4047

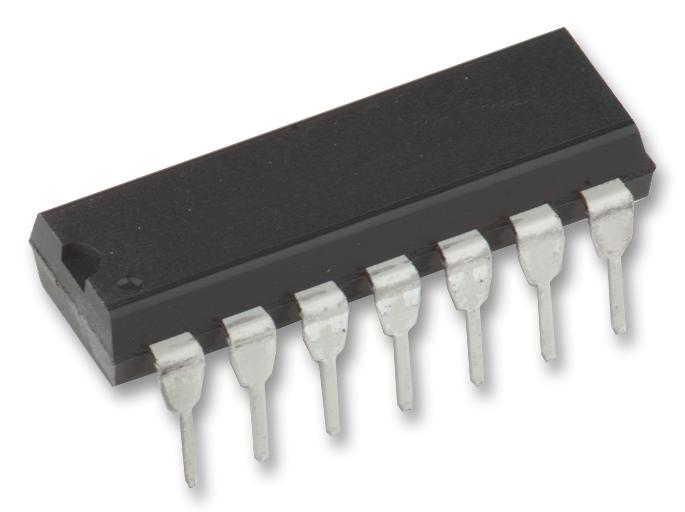

- Device Marking: CD4047BE
- Fall Time tf: 20ns
- IC Generic Number: 4047
- Logic Function Number: 4047
- Logic IC Base Number: 4047
- Logic IC Function: Monostable/Astable Multivibrator
- No. of Gates: 1
- Operating Temperature Range: -55°C to +125°C
- Rise Time: 20ns
- Supply Voltage Range: 3V to 18V
- Termination Type: Through Hole
