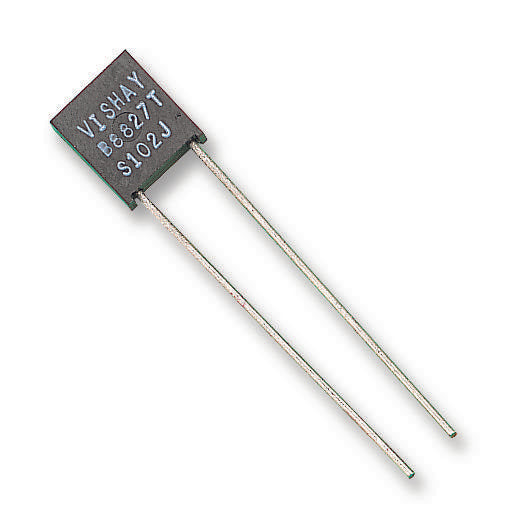

Y0785350R000T9L Res, 350R, 0.01%, 600MW, Radial Vishay Foil Resistors

VISHAY FOIL RESISTORSUGS :Y0785350R000T9L Code de commande:1203348

Prix:
Prix ​​promotionnel€32,14

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (11 unité)

Documents et téléchargements

description

VISHAY FOIL RESISTORS - Y0785350R000T9L - Through Hole Resistor, 350 ohm, S, 600 mW, ± 0.01%, Radial Leaded, 300 V

  • Resistance: 350ohm
  • Product Range: S Series
  • Power Rating: 600mW
  • Resistance Tolerance: ± 0.01%
  • Resistor Case Style: Radial Leaded
  • Voltage Rating: 300V
  • Resistor Element Material: Metal Foil
  • Temperature Coefficient: ± 4.5ppm/°C
  • Automotive Qualification Standard: -
  • External Depth: 2.49mm
  • External Length / Height: 8mm
  • Full Power Rating Temperature: 70°C
  • Lead Diameter: 0.6mm
  • Lead Spacing: 5.08mm
  • Load Life Stability +: 50
  • Load Life Stability -: 50ppm/°C
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Resistor Mounting: Through Hole
  • Rise Time: 1ns
  • Shelf Life Stability +: 25PPM/yr
  • Shelf Life Stability -: 25PPM/yr
  • Temp Coeff Lower Limit Temperature: 0°C
  • Temperature Coeff. +: 0.6ppm/°C
  • Temperature Coeff. -: 0.6ppm/°C
  • Temperature Upper Limit Temp Coeff: 60°C
  • Thermal EMF: 0.1µV/°C
  • Tolerance +: 0.01%
  • Tolerance -: 0.01%
  • Voltage Rating V DC: 300V
  • Voltage Rating VAC: 300V
