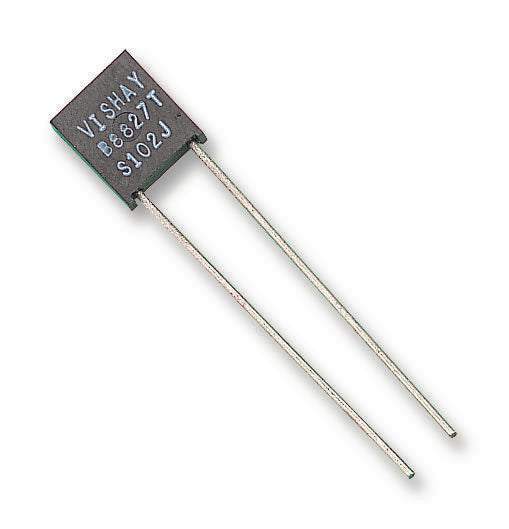

VISHAY FOIL RESISTORS - Y078525K0000T9L - Through Hole Resistor, 25 kohm, S, 600 mW, ± 0.01%, Radial Leaded, 300 V
- Resistance: 25kohm
- Product Range: S Series
- Power Rating: 600mW
- Resistance Tolerance: ± 0.01%
- Resistor Case Style: Radial Leaded
- Voltage Rating: 300V
- Resistor Element Material: Metal Foil
- Temperature Coefficient: ± 4.5ppm/°C
- Automotive Qualification Standard: -
- External Depth: 2.49mm
- External Length / Height: 8mm
- Full Power Rating Temperature: 70°C
- Lead Diameter: 0.6mm
- Lead Spacing: 5.08mm
- Load Life Stability +: 50
- Load Life Stability -: 50ppm/°C
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistor Mounting: Through Hole
- Rise Time: 1ns
- Shelf Life Stability +: 25PPM/yr
- Shelf Life Stability -: 25PPM/yr
- Temp Coeff Lower Limit Temperature: 0°C
- Temperature Coeff. +: 0.6ppm/°C
- Temperature Coeff. -: 0.6ppm/°C
- Temperature Upper Limit Temp Coeff: 60°C
- Thermal EMF: 0.1µV/°C
- Tolerance +: 0.01%
- Tolerance -: 0.01%
- Voltage Rating V DC: 300V
- Voltage Rating VAC: 300V
