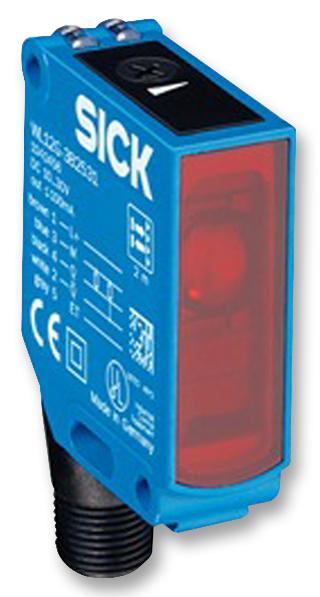

SICK - WL12G-3B2531 - Photo Sensor, 4 m, NPN / PNP, Retroreflective, 10 to 30 VDC, M12 Connector, W12G Series
- Sensing Range Max: 2.5m
- Sensing Method: Retroreflective
- Sensor Output: NPN / PNP
- Product Range: W12 Series
- Connection Method: M12 Connector
- Supply Voltage DC Min: 10V
- Supply Voltage DC Max: 30V
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 42mm
- External Length / Height: 48.5mm
- External Width: 15.6mm
- IP / NEMA Rating: IP69K
- Operating Temperature Max: 60°C
- Operating Temperature Min: -40°C
- Output Current Max: 0.1A
- Sensing Distance Max: 2.5m
- Sensing Distance Min: 0mm
- Sensing Range: 0m to 4m
- Sensor Input: Optical
- Supply Voltage Range DC: 10V to 30V
- Thread Size: M12
