Varistors
V275SM7 VARISTOR, MOV, 710V, SMD LITTELFUSE
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
V275SM7 VARISTOR, MOV, 710V, SMD LITTELFUSE

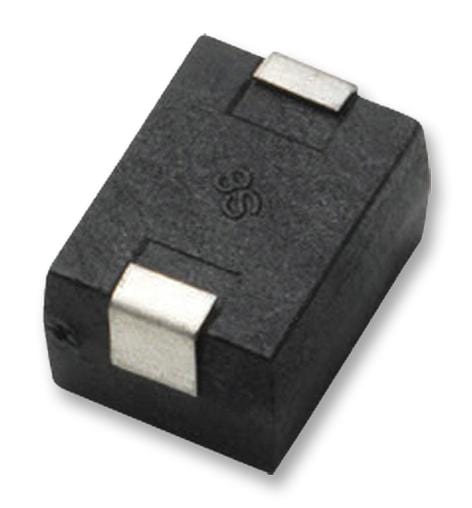

V275SM7 Varistor, MOV, 710V, SMD LITTELFUSE

LITTELFUSEUGS :V275SM7 Code de commande:2383262
Prix:
€4,25

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

Fiche produit

description

LITTELFUSE - V275SM7 - TVS Varistor, 275 V, 369 V, SM7, 710 V, SMD, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 275V
  • Voltage Rating V DC: 369V
  • Product Range: SM7 Series
  • Clamping Voltage Vc Max: 710V
  • Varistor Case Style: SMD
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 1.2kA
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Peak Energy (10/1000uS): 23J
  • Automotive Qualification Standard: -
  • Peak Pulse Current IPP @ 8/20µs: 1200A
  • Surge Current: 1200A
  • Varistor Voltage @ 1mA: 430V
  • Varistor Voltage @ 1mA Max: 473V
  • Varistor Voltage Tolerance +: 10%
  • Varistor Voltage Tolerance -: 10%
