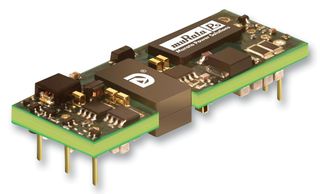

MURATA POWER SOLUTIONS - UWE-12/6-Q12P-C - Isolated Through Hole DC/DC Converter, ITE, 4:1, 72 W, 1 Output, 12 V, 6 A
- No. of Outputs: 1 Output
- Output Power Max: 72W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 6A
- Output Voltage - Output 2: 12V
- Output Current - Output 2: 6A
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: UWE Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: Eighth Brick
- DC / DC Converter Mounting: Through Hole
- Width: 22.9mm
- Height: 9.7mm
- Depth: 58.4mm
- SVHC: No SVHC (07-Jul-2017)
- Approval Bodies: CSA, IEC, UL
- Approvals & Standards: CSA, IEC, UL
- Efficiency: 91.5%
- External Depth: 9.7mm
- External Length / Height: 22.9mm
- External Width: 58.4mm
- Input Voltage: 12V
- Isolation Voltage: 1.5kV
- No. of Outputs: 1Outputs
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Output Ripple Voltage pk-pk: 180mV
- Power Rating: 72W
- Supply Voltage: 12V
