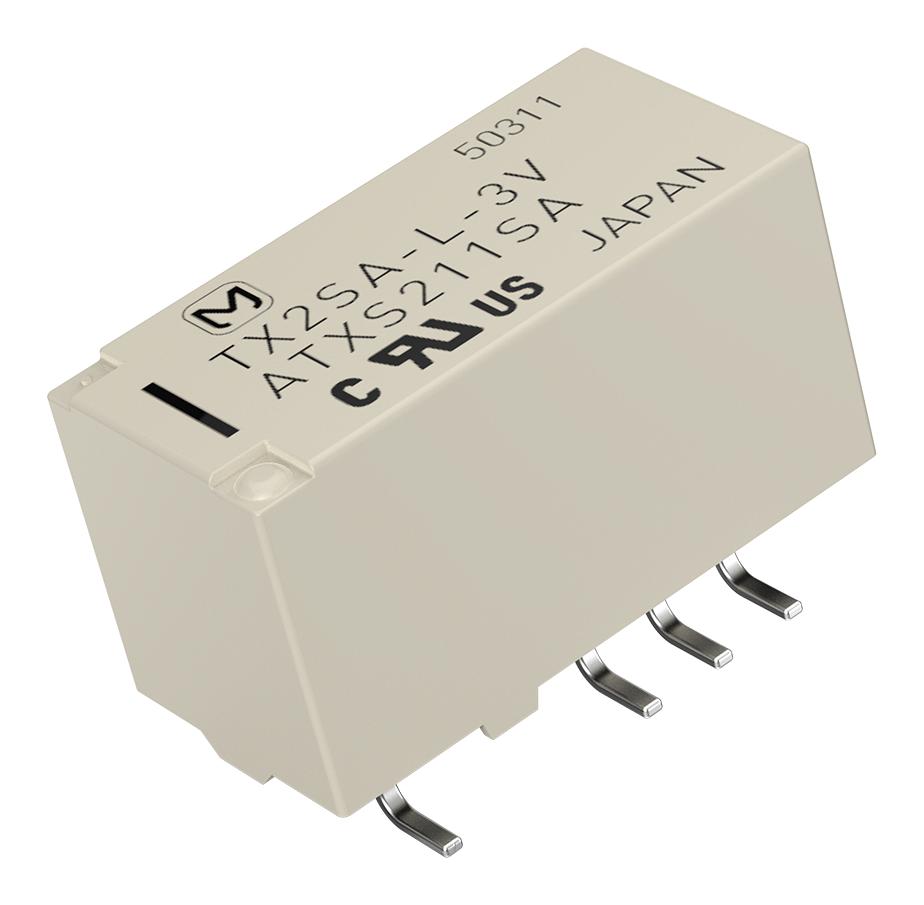

TX2SA-5V RELAY, SIGNAL, DPDT, 30VDC, 2A PANASONIC

PANASONICUGS :TX2SA-5V Code de commande:1200957

Prix:
Prix ​​promotionnel€4,70

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1298 unité)

Documenten en downloads

description

PANASONIC - TX2SA-5V - Signal Relay, 5 VDC, DPDT, 2 A, TX, Surface Mount, Non Latching

  • Coil Voltage: 5VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: TX Series
  • Relay Mounting: SMD
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 30V
  • Contact Material: Silver
  • Coil Resistance: 178ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: CSA, UL
  • Approval Category: EN 41003
  • Approvals & Standards: CSA, UL
  • Coil Current: 28.1mA
  • Coil Operating Lower Percent Limit: 75%
  • Coil Operating Upper Percent Limit: 150%
  • Coil Power Continuous: 140mW
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 500mA
  • Contact Current DC Max: 2A
  • Contact Current Max: 2A
  • Contact Current Min: 10µA
  • Contact Voltage AC Max: 125V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 140mW
  • External Depth: 15mm
  • External Height: 8.2mm
  • External Length / Height: 15mm
  • External Width: 7.4mm
  • Lead Spacing: 2.54mm
  • Nom Operating Power: 140mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
