TSM 0509S Converter, DC/DC, SMT, 1W, 9V TRACO Power

TRACO POWERUGS :TSM 0509S Code de commande:1242629

Prix:
Prix ​​promotionnel€14,83

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (54 unité)

Documents et téléchargements

description

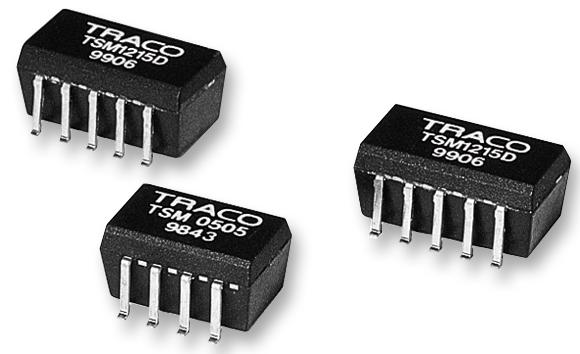

TRACO POWER - TSM 0509S - Isolated Surface Mount DC/DC Converter, ITE, 1:1, 1 W, 1 Output, 9 V, 110 mA

  • No. of Outputs: 1 Output
  • Output Power Max: 1W
  • Output Voltage - Output 1: 9V
  • Output Current - Output 1: 110mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: -
  • Input Voltage DC Min: 4.5V
  • Input Voltage DC Max: 5.5V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: Surface Mount DIP
  • DC / DC Converter Mounting: Surface Mount Device
  • Width: 8mm
  • Height: 6.8mm
  • Depth: 12.7mm
  • SVHC: No SVHC (27-Jun-2018)
  • Efficiency: 80%
  • Efficiency Max: 78%
  • External Depth: 12.7mm
  • External Length / Height: 6.95mm
  • External Width: 80mm
  • Isolation Voltage: 1kV
  • Line Regulation: 10%
  • Load Regulation: 10%
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Output Ripple Voltage pk-pk: 120mV
  • Power Rating: 1W
  • Supply Voltage: 5V
