description

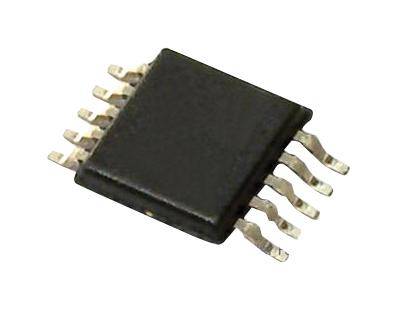

TEXAS INSTRUMENTS - TPS61016DGS - Boost (Step Up) Switching Regulator, Fixed, 800mV-3.3V In, 3.3V And 200mA Out, VSSOP-10
- Topology: Boost (Step Up)
- Input Voltage Min: 800mV
- Input Voltage Max: 3.3V
- DC / DC Converter IC Case: VSSOP
- No. of Pins: 10Pins
- Output Current: 200mA
- Output Voltage Nom.: 3.3V
- Switching Frequency: 500kHz
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 61016
- Frequency: 780kHz
- No. of Outputs: 1Outputs
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Output Current Max: 0.2A
- Output Voltage: 3.3V
- Power Supply IC Type: Step-up convertor
- Primary Input Voltage: 3.3V
- Supply Voltage Min: 0.8V
- Switch Output Current Isw Max: 1.13A
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Switching, Step Up (Boost)
