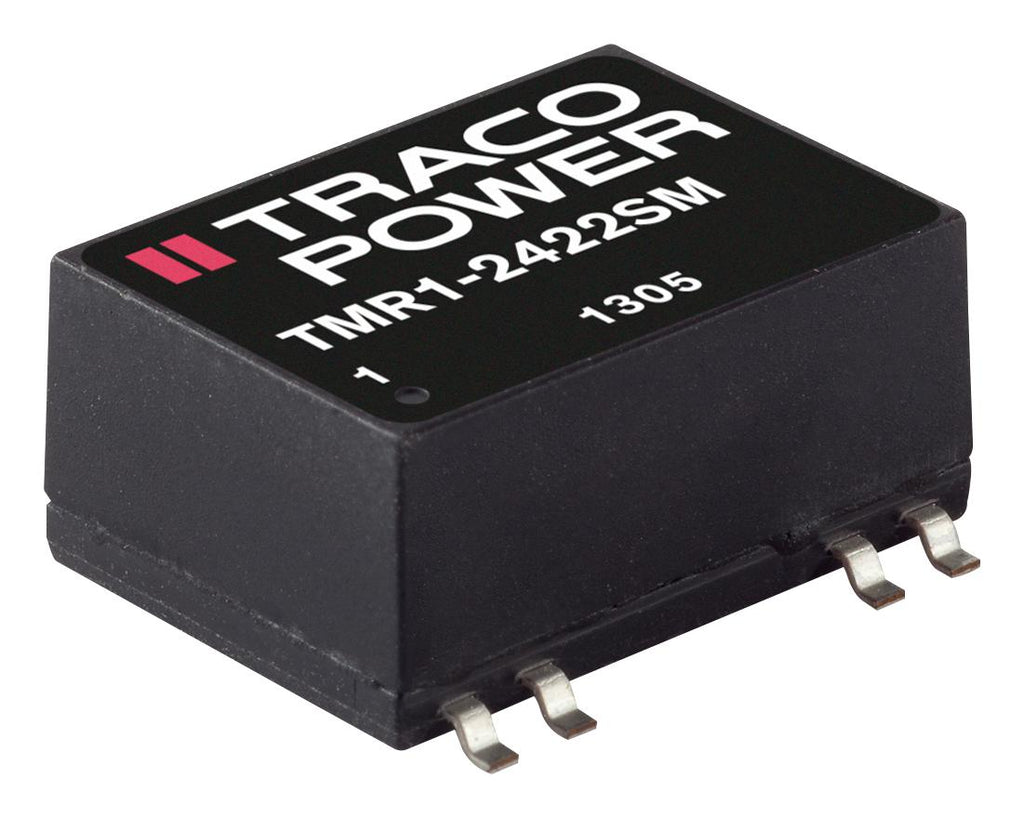

TRACO POWER - TMR 1-2422SM - Isolated Surface Mount DC/DC Converter, ITE, 2:1, 1 W, 2 Output, 12 V, 42 mA
- No. of Outputs: 2 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 42mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 42mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: TMR 1 & TMR 1SM Series
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: Surface Mount DIP
- DC / DC Converter Mounting: Surface Mount Device
- Width: 13.7mm
- Height: 8.45mm
- Depth: 18.9mm
- SVHC: No SVHC (27-Jun-2018)
- Approvals & Standards: CB, IEC, UL
- No. of Outputs: 2Outputs
