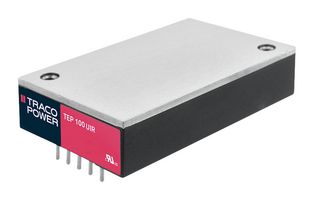

TEP 100-3615UIR - Isolated Through Hole DC/DC Converter, Railway, 12:1, 100 W, 1 Output, 24 V, 4.2 A - TRACO POWER
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
TEP 100-3615UIR - Isolated Through Hole DC/DC Converter, Railway, 12:1, 100 W, 1 Output, 24 V, 4.2 A - TRACO POWER

TEP 100-3615UIR - Isolated Through Hole DC/DC Converter, Railway, 12:1, 100 W, 1 Output, 24 V, 4.2 A - TRACO POWER

TRACO POWERUGS :TEP 100-3615UIR Code de commande:3869078
Prix:
€229,48

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documenten en downloads

description

  • DC / DC Converter Output Type: Fixed, Adjustable
  • DC / DC Converter Type: DIP
  • Depth: 36.8mm
  • Height: 12.7mm
  • Input Ratio: 12:1
  • Input Voltage DC Max: 75V
  • Input Voltage DC Min: 9V
  • Input Voltage DC Nom: 36V
  • Isolation Voltage: 3kV
  • No. of Outputs: 1 Output
  • Output Current - Output 1: 4.2A
  • Output Current - Output 2: -
  • Output Power Max: 100W
  • Output Regulation: -
  • Output Voltage - Output 1: 24V
  • Output Voltage - Output 2: -
  • Power Supply Applications: Railway
  • Product Range: TEP 100UIR Series
  • Width: 50.8mm
