Tel 3-2422 Converter, DC-DC, +/-12V, 3W TRACO Power

TRACO POWERUGS :TEL 3-2422 Code de commande:1204966

Prix:
Prix ​​promotionnel€24,08

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (380 unité)

Documents et téléchargements

description

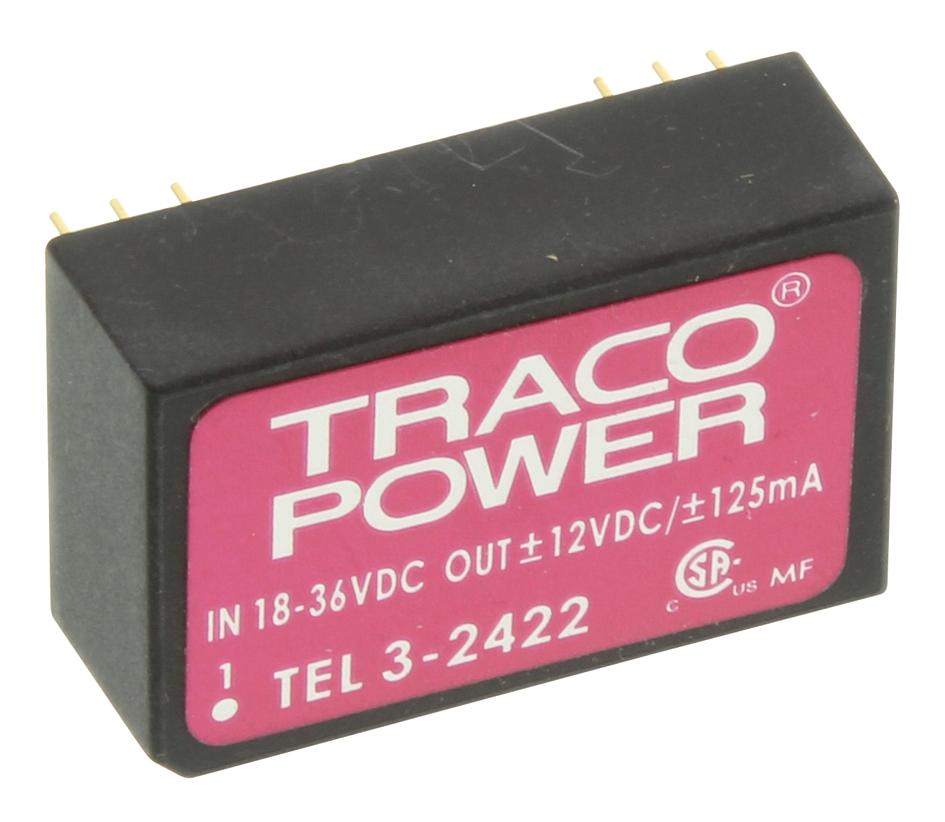

TRACO POWER - TEL 3-2422 - Isolated Through Hole DC/DC Converter, ITE, 2:1, 3 W, 2 Output, 12 V, 125 mA

  • No. of Outputs: 2 Output
  • Output Power Max: 3W
  • Output Voltage - Output 1: 12V
  • Output Current - Output 1: 125mA
  • Output Voltage - Output 2: -12V
  • Output Current - Output 2: 125mA
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: TEL 3 Series
  • Input Voltage DC Min: 18V
  • Input Voltage DC Max: 36V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: DIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 20mm
  • Height: 10.2mm
  • Depth: 32mm
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: CSA, EN, IEC, UL
  • Approvals & Standards: CSA, IEC, UL
  • Flammability Rating: UL94V-0
  • Isolation Voltage: 1.5kV
  • No. of Outputs: 2Outputs
