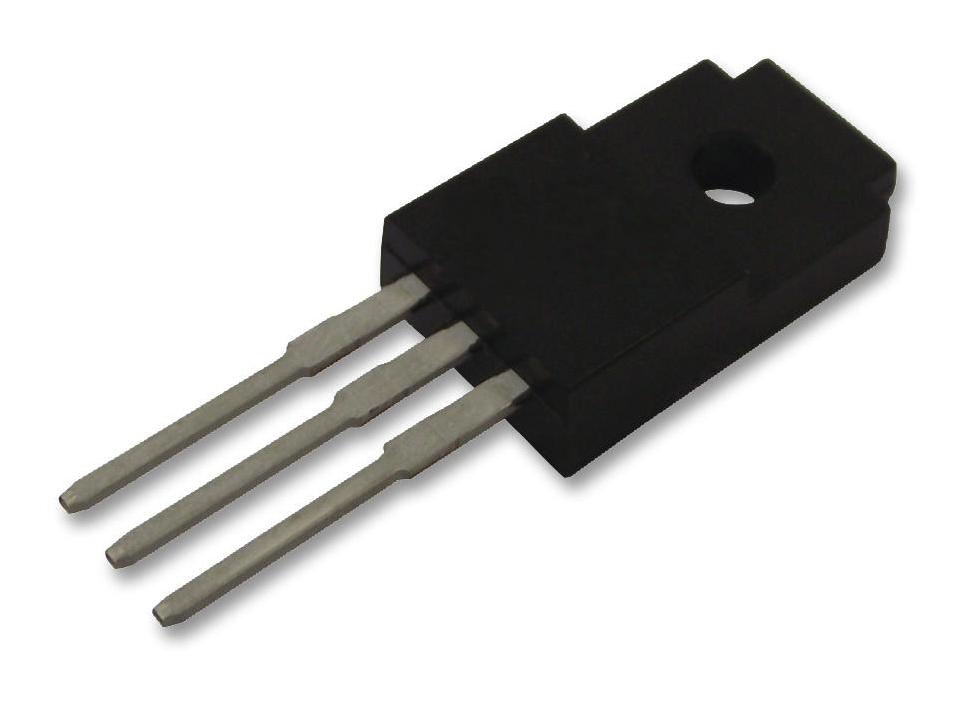

STMICROELECTRONICS - STGF3NC120HD - IGBT, 6 A, 2.8 V, 25 W, 1.2 kV, TO-220FP, 3 Pins
- DC Collector Current: 6A
- Collector Emitter Saturation Voltage Vce(on): 2.8V
- Power Dissipation Pd: 25W
- Collector Emitter Voltage V(br)ceo: 1.2kV
- Transistor Case Style: TO-220FP
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Current Ic Continuous a Max: 3A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Max: 25W
- Pulsed Current Icm: 10A
- Rise Time: 3.5ns
- Termination Type: Through Hole
- Transistor Polarity: N Channel
- Transistor Type: IGBT
- Voltage Vces: 1.2kV
