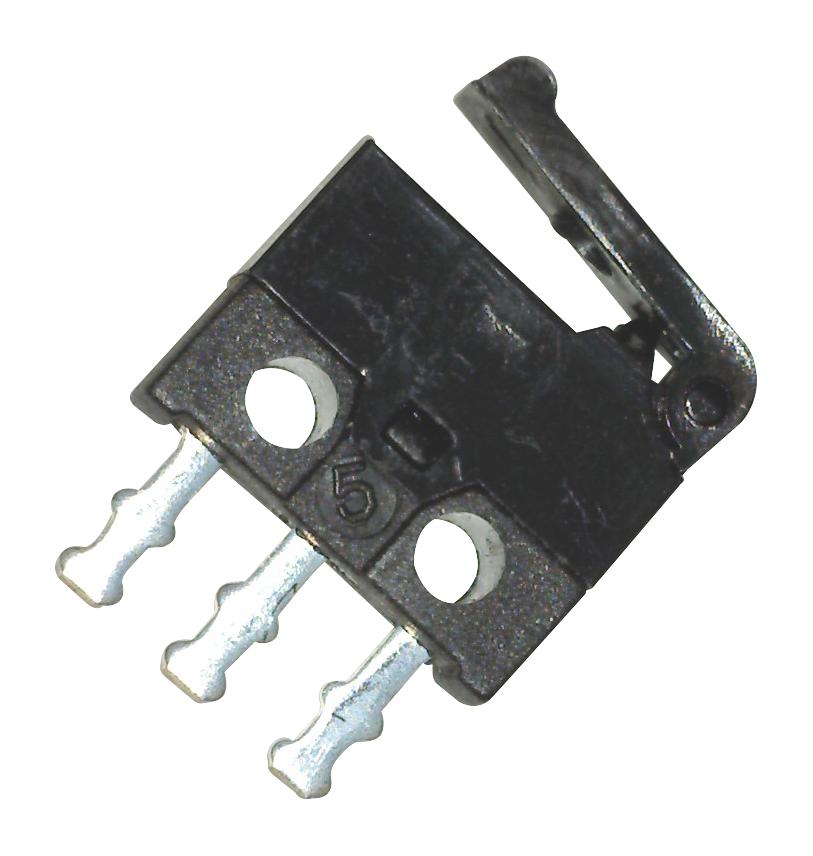

SSM-001 Microswitch, SPDT, 0.5A, Plastic Lever multicomp Pro

MULTICOMP PROUGS :SSM-001 Code de commande:1735368

Prix:
Prix ​​promotionnel€1,66

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3594 unité)

Documents et téléchargements

description

MULTICOMP PRO - SSM-001 - Microswitch, Snap Action, Lever, SPDT, Solder, 500 mA, 30 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Solder
  • Contact Current Max: 500mA
  • Contact Voltage DC Nom: 30VDC
  • Product Range: -
  • Contact Voltage AC Nom: -
  • Operating Force Max: 120gf
  • SVHC: No SVHC (07-Jul-2017)
  • Actuation Type: Lever
  • Actuator Type: Plastic Lever
  • Contact Current DC Max: 500mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 30V
  • External Depth: 2.7mm
  • External Width: 8.2mm
  • Height: 6.2mm
  • Insulation Resistance: 100Mohm
  • No. of Mechanical Operations: 100000
  • Operating Force: 1.18N
  • Operating Force Min: 50gf
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -15°C
  • Switch Case: PBT (Polybutylene Terephthalate)
