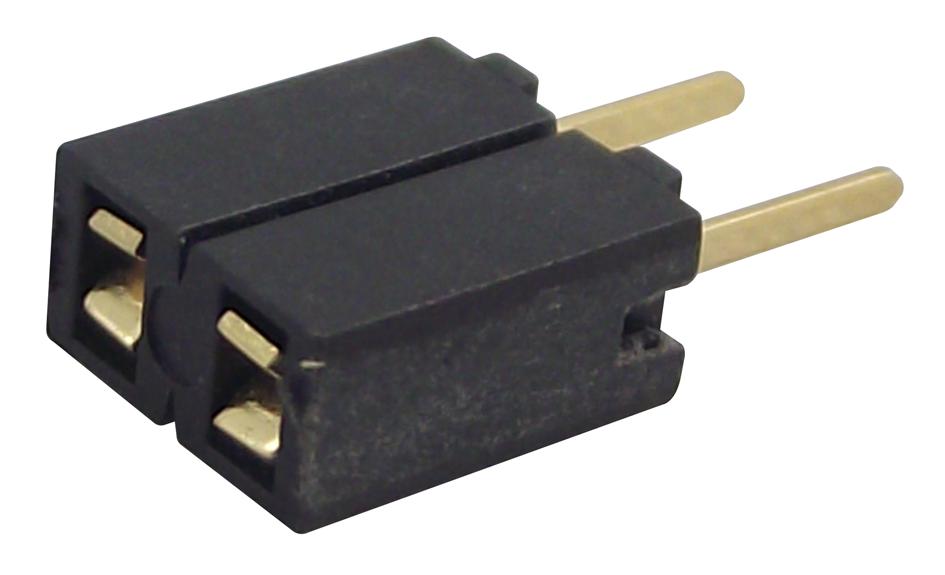

SAMTEC - SSA-102-S-G - PCB Receptacle, Board-to-Board, 2.54 mm, 1 Rows, 2 Contacts, Through Hole Mount, SSA
- Pitch Spacing: 2.54mm
- No. of Contacts: 2Contacts
- Gender: Receptacle
- Product Range: SSA Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2018)
- Colour: Black
- Contact Resistance: 10mohm
- Contact Termination: Through Hole Vertical
- Current Rating: 1A
- Flammability Rating: UL94V-0
- Insulation Resistance: 5000Mohm
- Lead Spacing: 2.54mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Termination Method: Solder
- Withstand Voltage: 1000V
