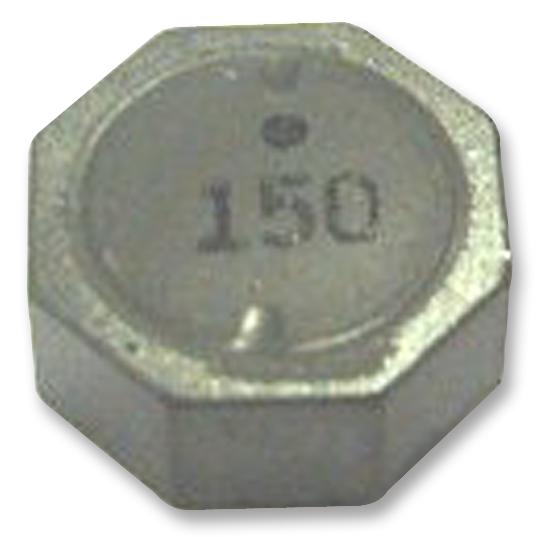

BOURNS - SRU6025-150Y - Power Inductor (SMD), 15 µH, 1.8 A, Shielded, 920 mA, SRU6025, 6.5mm x 6.2mm x 2.5mm
- Inductance: 15µH
- RMS Current (Irms): 1.8A
- Inductor Construction: Shielded
- Saturation Current (Isat): 920mA
- Product Range: SRU6025 Series
- Power Inductor Case: 6.5mm x 6.2mm x 2.5mm
- DC Resistance Max: 0.086ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (27-Jun-2018)
- External Depth: 2.8mm
- External Length / Height: 6.2mm
- External Width: 6.2mm
- Inductor Type: Shielded Power Choke
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 12
- Q Test Frequency: 2.52MHz
- Resonant Frequency: 22MHz
- Self Resonant Frequency Min: 22MHz
- Test Frequency: 2.52MHz
