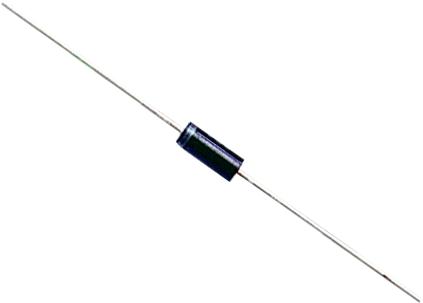

SR104 R0 Diode, Schottky, 1A, 40V Taiwan Semiconductor

TAIWAN SEMICONDUCTORUGS :SR104 Code de commande:7278373

Prix:
Prix ​​promotionnel€0,79

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4566 unité)

Documents et téléchargements

description

TAIWAN SEMICONDUCTOR - SR104 - Small Signal Schottky Diode, Single, 40 V, 1 A, 550 mV, 60 A, 125 °C

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 40V
  • Forward Current If(AV): 1A
  • Forward Voltage VF Max: 550mV
  • Forward Surge Current Ifsm Max: 60A
  • Operating Temperature Max: 125°C
  • Diode Case Style: DO-41 (DO-204AL)
  • No. of Pins: 2Pins
  • Product Range: SR104 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Current If @ Vf: 1A
  • Current Ifsm: 40A
  • Device Marking: SR104
  • Diode Type: Schottky
  • External Diameter: 2.7mm
  • External Length / Height: 5.2mm
  • Forward Current If Max: 1A
  • Forward Voltage: 550mV
  • Junction Temperature Tj Max: 125°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +125°C
  • Termination Type: Axial Leaded
