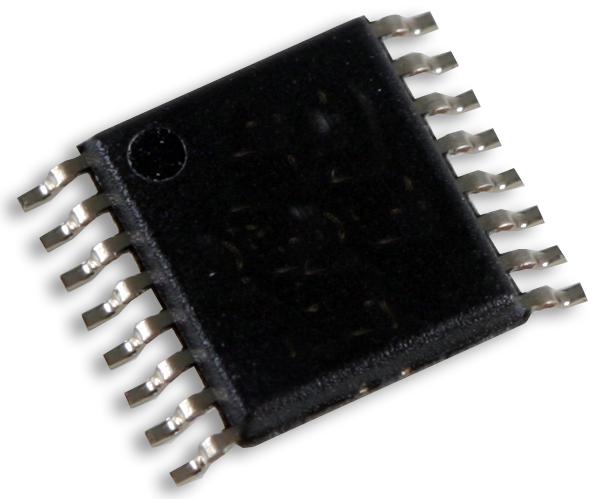

TEXAS INSTRUMENTS - SN74LVC138APWR - Decoder / Demultiplexer, LVC Family, 8 Output, 24 mA, 1.65 V to 3.6 V, TSSOP-16
- Logic Family / Base Number: 74LVC138
- Logic Type: Decoder / Demultiplexer
- No. of Outputs: 8Outputs
- Logic Case Style: TSSOP
- No. of Pins: 16Pins
- Supply Voltage Min: 1.65V
- Supply Voltage Max: 3.6V
- Logic IC Family: 74LVC
- Logic IC Base Number: 74138
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Applications: Data Routing, Memory Address Decoding
- Base Number: 74
- IC Applications: Data Routing, Memory Address Decoding
- Logic Function Number: 74138
- Logic IC Base Number: 74138
- Logic IC Function: 3-to-8 Line Decoder/Demultiplexer
- Operating Temperature Range: -40°C to +85°C
- Output Current Max: 24mA
- Supply Voltage: 3.3V
- Supply Voltage Range: 1.65V to 3.6V
- Termination Type: Surface Mount Device
