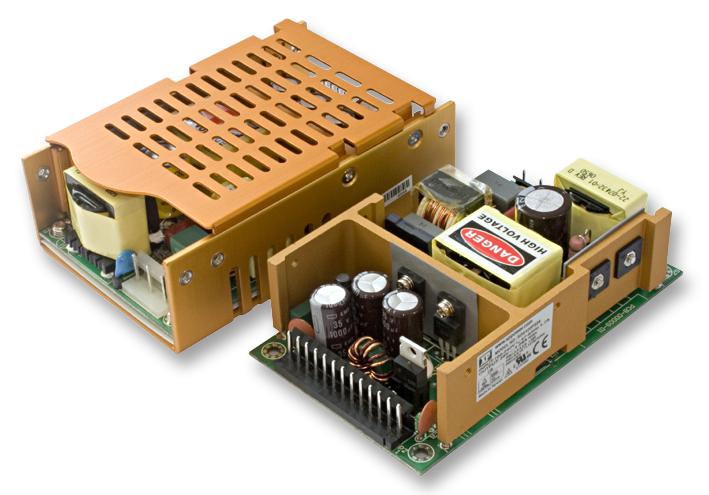

XP POWER - SDS120PS48B-C - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 120 W, 48 V, 2.5 A
- No. of Outputs: 1Outputs
- Output Power Max: 120W
- Output Voltage - Output 1: 48V
- Output Current - Output 1: 2.5A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Fixed
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Applications: Medical
- Approval Bodies: CE, CSA, cUL, EN, UL
- Approvals / Standards: EN 60601
- Efficiency: 80%
- External Depth: 127mm
- External Length / Height: 44mm
- External Width: 81.4mm
- Height: 44mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Length: 127mm
- Line Regulation: 1%
- Load Regulation: 5%
- No. of Outputs: 1 Output
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Output Current Max: 2.5A
- Output Ripple and Noise Voltage pk-pk: 1% pk-pk
- Power Rating: 120W
- Power Supply Type: Switch Mode
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
