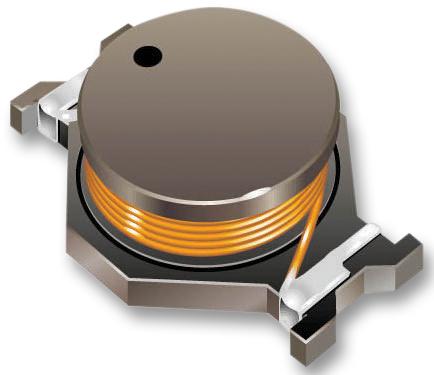

BOURNS - SDR2207-100ML - Power Inductor (SMD), 10 µH, 6.5 A, Unshielded, 10 A, SDR2207, 22mm x 15mm x 7mm
- Inductance: 10µH
- RMS Current (Irms): 6.5A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 10A
- Product Range: SDR2207 Series
- Power Inductor Case: 22mm x 15mm x 7mm
- DC Resistance Max: 0.0172ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Inductor Type: Power
- No. of Pins: 2Pins
- Q Factor: 53
- Q Test Frequency: 5MHz
- Resonant Frequency: 20MHz
- Self Resonant Frequency Min: 20MHz
