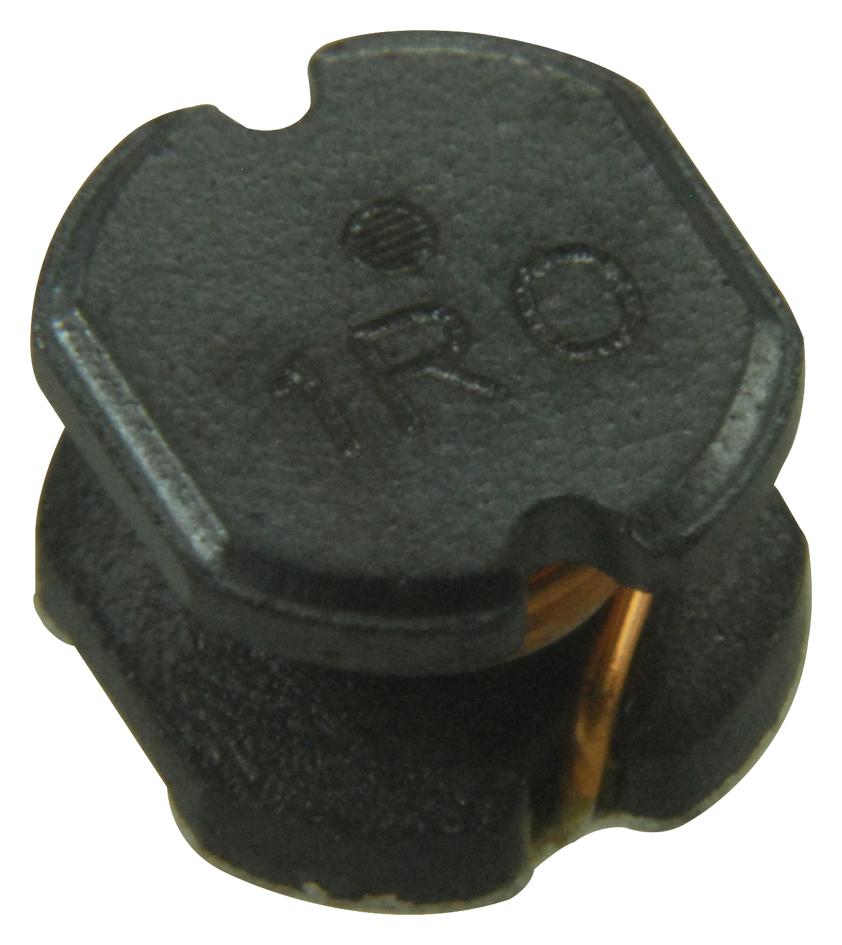

BOURNS - SDR0604-681KL - Power Inductor (SMD), 680 µH, 160 mA, Unshielded, 250 mA, 5.8mm x 5.8mm x 4.8mm
- Inductance: 680µH
- RMS Current (Irms): 160mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 250mA
- Product Range: -
- Power Inductor Case: 5.8mm x 5.8mm x 4.8mm
- DC Resistance Max: 4.65ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 5.8mm
- External Length / Height: 4.8mm
- External Width: 5.8mm
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 26
- Q Test Frequency: 252kHz
- Resonant Frequency: 2MHz
- Self Resonant Frequency Min: 2MHz
- Test Frequency: 0.252MHz
