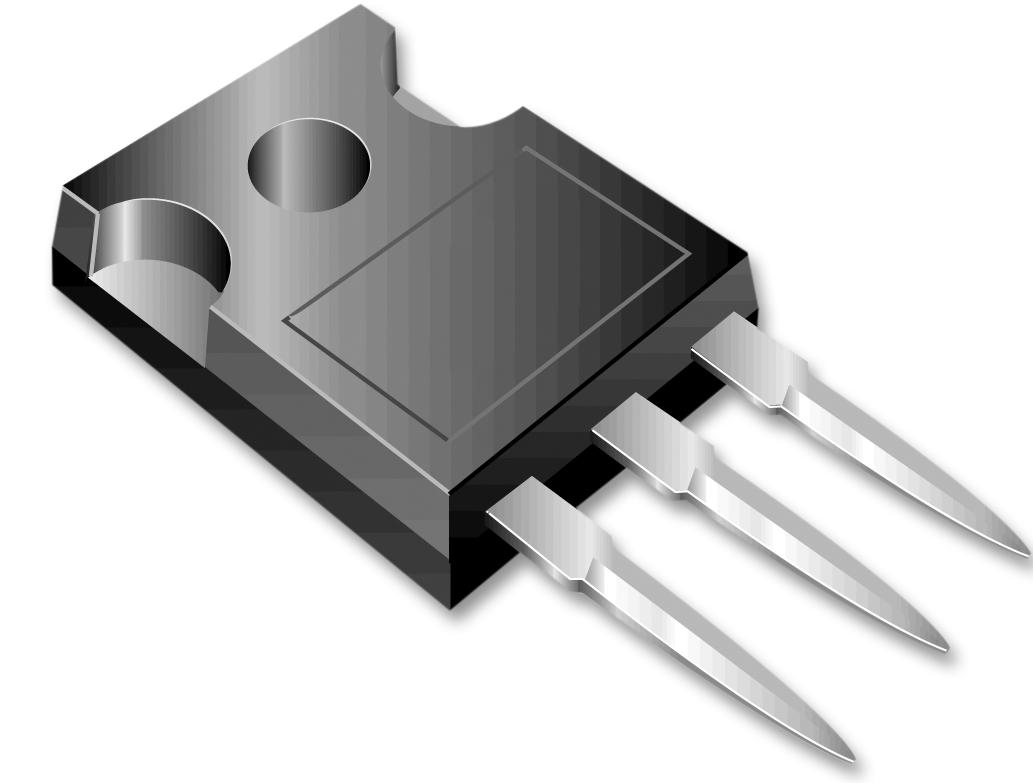

VISHAY - SBL3040PT-E3 - Small Signal Schottky Diode, Dual Common Cathode, 40 V, 30 A, 550 mV, 275 A, 125 °C
- Diode Configuration: Dual Common Cathode
- Repetitive Reverse Voltage Vrrm Max: 40V
- Forward Current If(AV): 30A
- Forward Voltage VF Max: 550mV
- Forward Surge Current Ifsm Max: 275A
- Operating Temperature Max: 125°C
- Diode Case Style: TO-247AD
- No. of Pins: 3Pins
- Product Range: SB Series
- Automotive Qualification Standard: -
- SVHC: Lead (27-Jun-2018)
- Current Ifsm: 275A
- Diode Type: Schottky
- Junction Temperature Tj Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Termination Type: Through Hole
