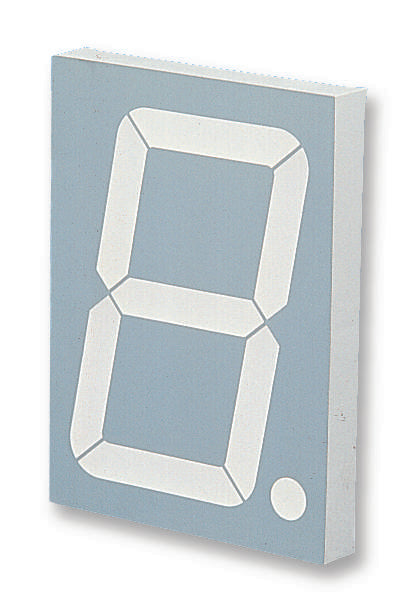

SA15-11EWA Display, Seven Segment, 47mm, Red KINGBRIGHT

KINGBRIGHTUGS :SA15-11EWA Code de commande:1168627

Prix:
Prix ​​promotionnel€9,39

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (129 unité)

Documenten en downloads

description

KINGBRIGHT - SA15-11EWA - 7 Segment LED Display, Mechanically Rugged, Red, 20 mA, 4 V, 16 mcd, 1, 38.1 mm

  • LED Colour: Red
  • Forward Current If: 20mA
  • Forward Voltage: 4V
  • Luminous Intensity: 16mcd
  • No. of Digits / Alpha: 1
  • Character Size: 38.1mm
  • Common Connection: Common Anode
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Background Colour: Grey
  • Character Type: 8.
  • Current If Luminous Intensity: 10mA
  • External Depth: 12.5mm
  • External Length / Height: 47mm
  • External Width: 33.15mm
  • Forward Current If Max: 20mA
  • Forward Current If(AV): 20mA
  • Forward Voltage VF Max: 2V
  • Lead Spacing: 2.54mm
  • Luminous Intensity per Segment @ If Max: 21mcd
  • Luminous Intensity per Segment @ If Min: 3.6mcd
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • PIV Max: 5V
  • Peak Forward Current: 20mA
  • Row Pitch: 40.64mm
  • Voltage Vf Typ: 2V
