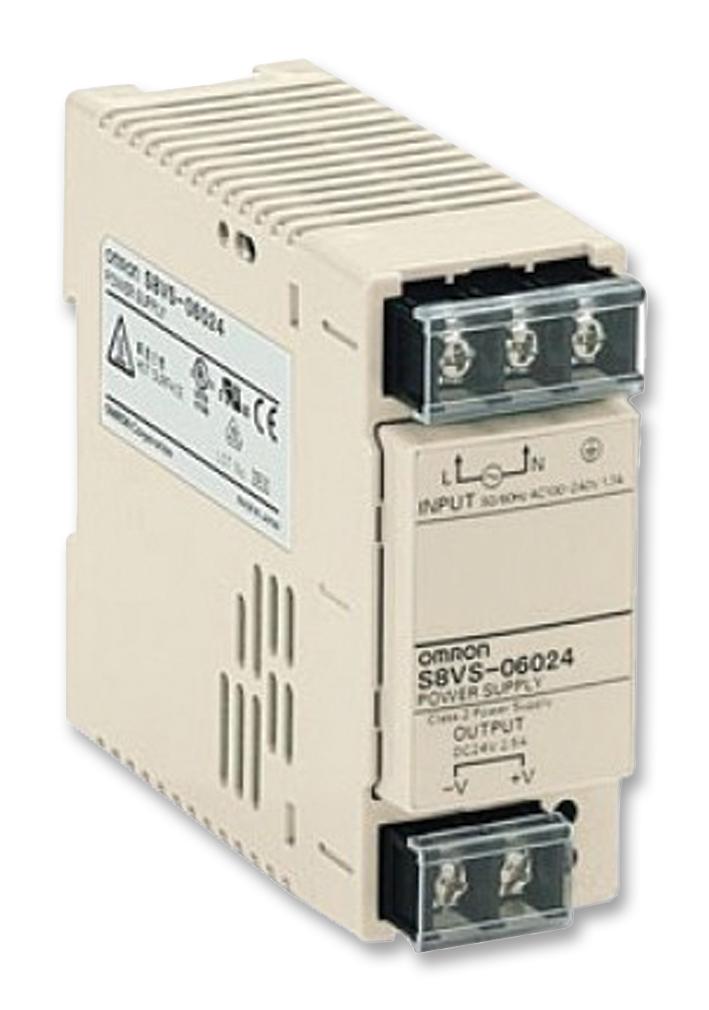

OMRON - S8VS-06024 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 60 W, 24 VDC, 2.5 A
- No. of Outputs: 1 Output
- Output Power Max: 60W
- Output Voltage - Output 1: 24VDC
- Output Current - Output 1: 2.5A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Fixed
- Product Range: -
- Applications: Industrial
- Approval Bodies: CSA, UL
- External Depth: 108.3mm
- External Length / Height: 99.5mm
- External Width: 40mm
- Frequency Max: 60Hz
- Frequency Min: 50Hz
- Height: 99.5mm
- Hold Up Time: 20ms
- Input Current: 1.7A
- Input Frequency: 63Hz
- Input Voltage: 85V AC to 264V AC
- Input Voltage AC Max: 264VAC
- Input Voltage AC Min: 85VAC
- Input Voltage Max: 240VAC
- Input Voltage Min: 100VAC
- Inrush Current: 25A
- Leakage Current: 0.5mA
- Length: 108.3mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Output Current: 2.5A
- Output Voltage: 24V
- Power Rating: 60W
- Supply Voltage: 264V
