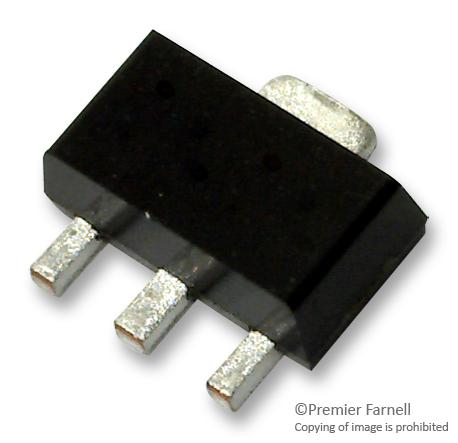

LITTELFUSE - S6X8BSRP - Thyristor, 600 V, 200 µA, 510 mA, 800 mA, SOT-89, 3 Pins
- Peak Repetitive Off-State Voltage, Vdrm: 600V
- Gate Trigger Current Max, Igt: 200µA
- Current It av: 510mA
- On State RMS Current IT(rms): 800mA
- Thyristor Case Style: SOT-89
- No. of Pins: 3Pins
- Peak Non Rep Surge Current Itsm 50Hz: 8A
- Holding Current Max Ih: 5mA
- Gate Trigger Voltage Max Vgt: 800mV
- Operating Temperature Max: 125°C
- Product Range: -
- MSL: -
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Thyristor Case: SOT-89
