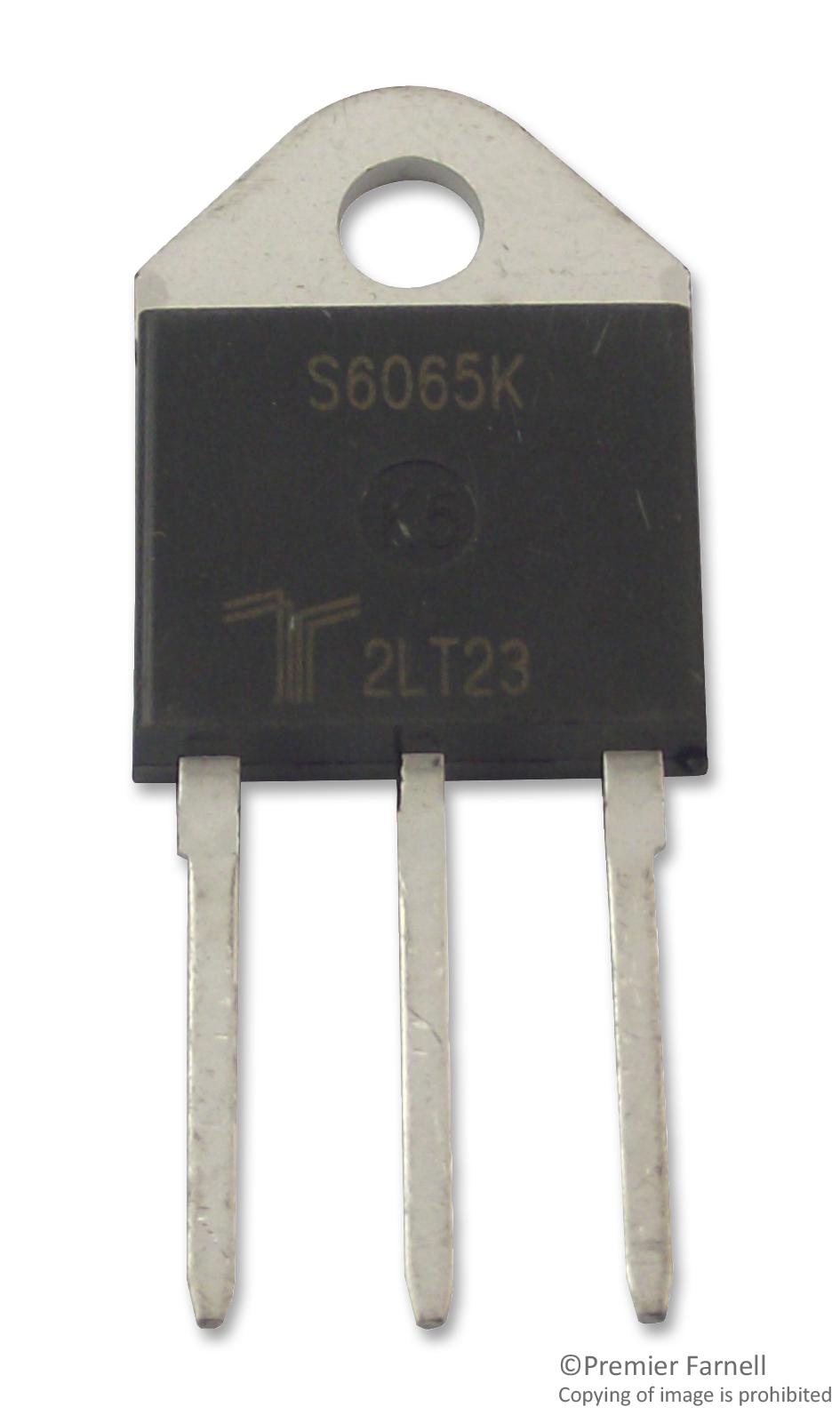

S6065KTP Thyristor, 600v, 65A, TO218AC LITTELFUSE

LITTELFUSEUGS :S6065KTP Code de commande:1827750

Prix:
Prix ​​promotionnel€13,93

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (89 unité)

Documents et téléchargements

description

LITTELFUSE - S6065KTP - Thyristor, 600 V, 50 mA, 41 A, 65 A, TO-218AC, 3 Pins

  • Peak Repetitive Off-State Voltage, Vdrm: 600V
  • Gate Trigger Current Max, Igt: 50mA
  • Current It av: 41A
  • On State RMS Current IT(rms): 65A
  • Thyristor Case Style: TO-218AC
  • No. of Pins: 3Pins
  • Peak Non Rep Surge Current Itsm 50Hz: 800A
  • Holding Current Max Ih: 80mA
  • Gate Trigger Voltage Max Vgt: 2V
  • Operating Temperature Max: 125°C
  • Product Range: -
  • MSL: -
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +125°C
  • Termination Type: Through Hole
  • Thyristor Case: TO-218AC
