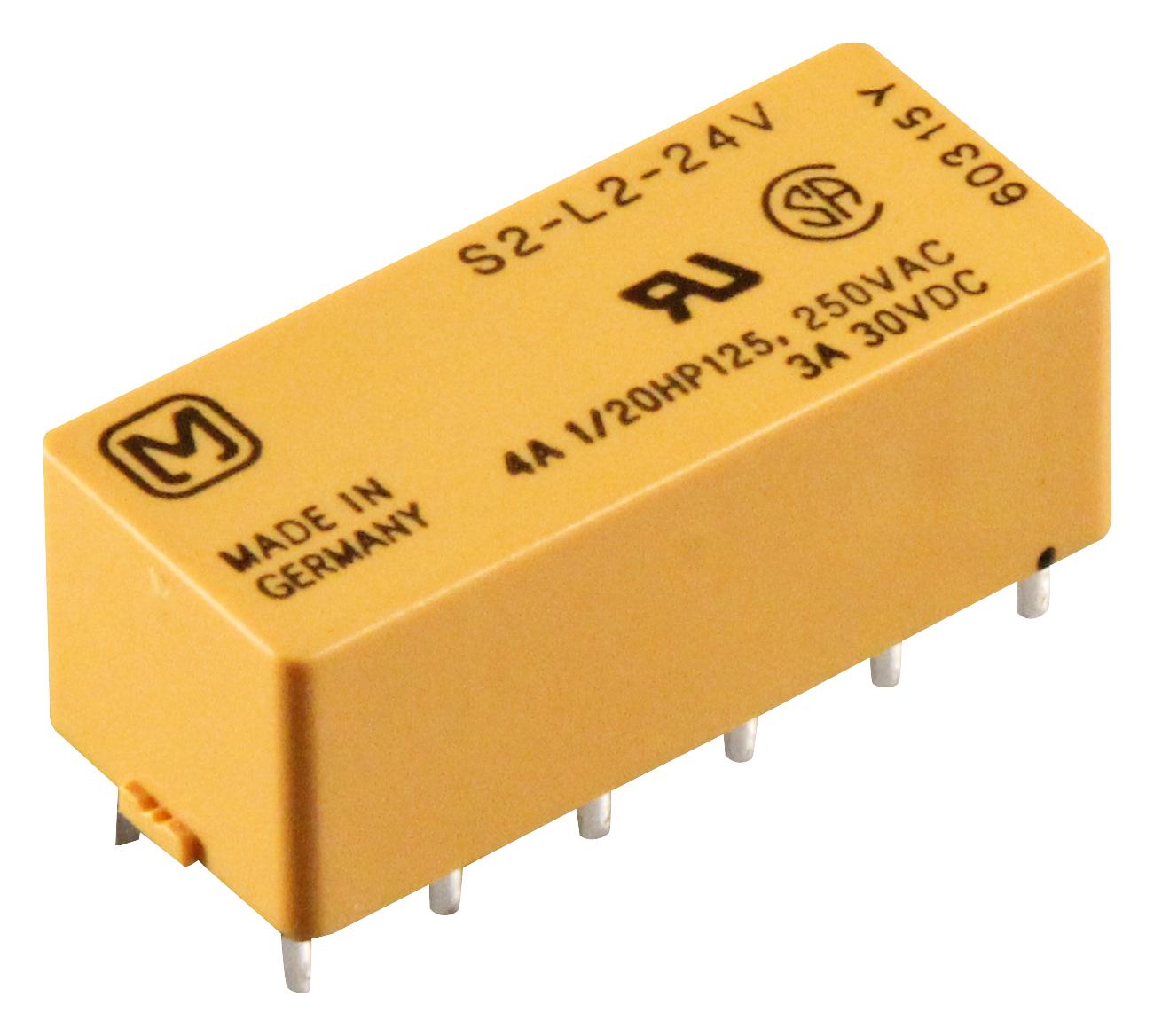

PANASONIC - S2-L2-DC24V - General Purpose Relay, S Series, Power, Latching Dual Coil, DPST-NO, DPST-NC
- Contact Configuration: DPST-NO, DPST-NC
- Coil Voltage: 24VDC
- Contact Current: 4A
- Product Range: S Series
- Relay Mounting: Through Hole
- Coil Type: Latching Dual Coil
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 2.85kohm
- SVHC: No SVHC (07-Jul-2017)
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Coil Current: 8.4mA
- Coil Operating Lower Percent Limit: 65%
- Coil Operating Upper Percent Limit: 140%
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 4A
- Contact Current DC Max: 3A
- Contact Current Max: 4A
- Contact Current Min: 100µA
- Contact Resistance: 50mohm
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 200mW
- Dielectric Voltage Coil to Contact: 1500VAC
- Dielectric Voltage Contact to Contact: 750VAC
- External Depth: 10.2mm
- External Height: 28.4mm
- External Length / Height: 28.4mm
- External Width: 12.5mm
- Weight: 8g
