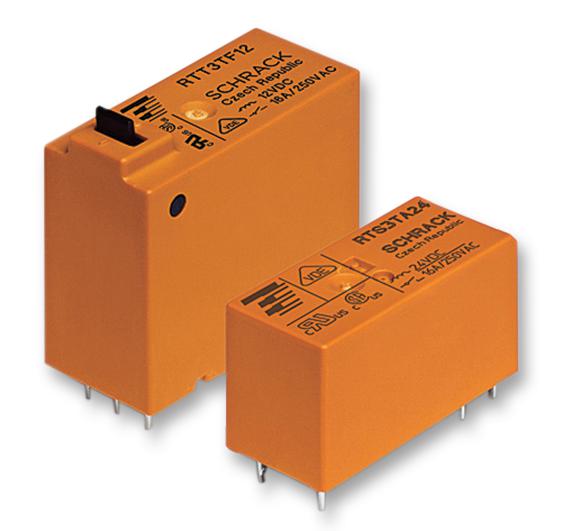

RTS3T024 Relay, SPST-NO, 250VAC, 16A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYUGS :1415898-1 Code de commande:9659579

Prix:
Prix ​​promotionnel€11,67

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (156 unité)

Documents et téléchargements

description

SCHRACK - TE CONNECTIVITY - 1415898-1 - Power Relay, SPST-NO, 24 VDC, 16 A, RT1 Inrush Power Series, Through Hole, Non Latching

  • Contact Configuration: SPST-NO
  • Coil Voltage: 24VDC
  • Contact Current: 16A
  • Product Range: RT1 Inrush Power Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Tungsten, Silver Tin Oxide
  • Coil Resistance: 1.44kohm
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: UL Recognised
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 16A
  • Contact Current Max: 16A
  • Contact Voltage AC Max: 400V
  • Contact Voltage AC Nom: 240V
  • Current Rating: 16A
  • DC Coil Power: 400mW
  • Dielectric Voltage Coil to Contact: 4000VAC
  • Dielectric Voltage Contact to Contact: 1250VAC
  • External Depth: 12.7mm
  • External Height: 15.7mm
  • External Length / Height: 15.7mm
  • External Width: 29mm
  • Flammability Rating: UL94V-0
  • Must Actuate Voltage: 16.8VDC
  • No. of Mechanical Operations: 5000000
  • No. of Pins: 6Pins
  • Nom Operating Power: 400mW
  • Operating Frequency Max: 1Hz
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
