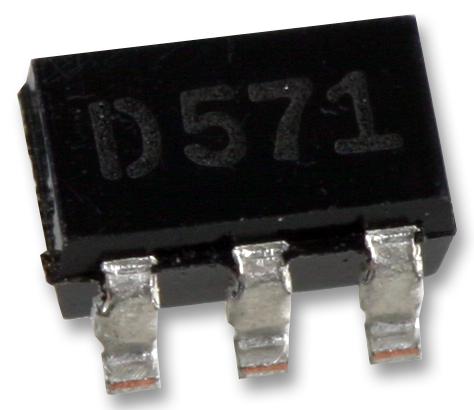

ROHM - RTQ035N03TR - Power MOSFET, N Channel, 30 V, 3.5 A, 0.038 ohm, TSMT, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 3.5A
- Drain Source Voltage Vds: 30V
- On Resistance Rds(on): 0.038ohm
- Rds(on) Test Voltage Vgs: 4.5V
- Threshold Voltage Vgs: 1.5V
- Power Dissipation Pd: 1.25W
- Transistor Case Style: TSMT
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- On State Resistance @ Vgs = 2.5V: 55mohm
- On State Resistance @ Vgs = 4.5V: 38mohm
- Pulse Current Idm: 15A
- Termination Type: Surface Mount Device
- Transistor Type: Protected MOSFET
- Voltage Vds Typ: 30V
- Voltage Vgs Rds on Measurement: 4.5V
- Voltage Vgs th Max: 1.5V
- Voltage Vgs th Min: 500mV
