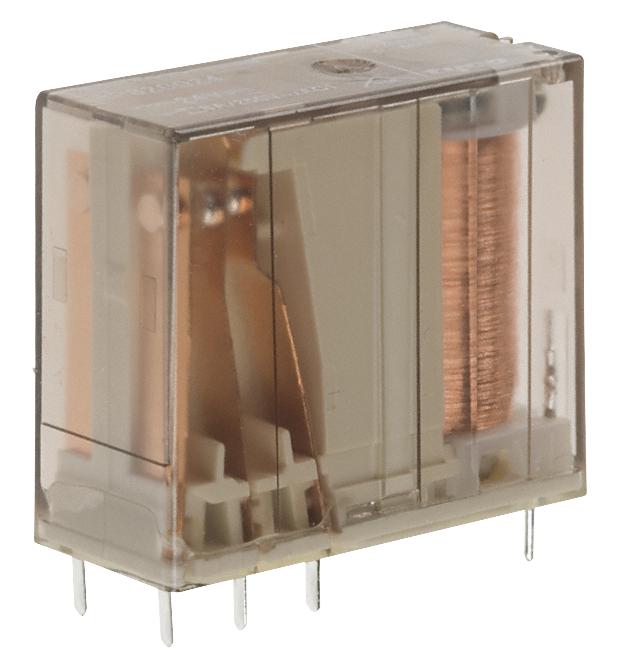

SCHRACK - TE CONNECTIVITY - 1393845-5 - Power Relay, DPDT, 24 VDC, 8 A, RPII/2, Through Hole, Non Latching
- Contact Configuration: DPDT
- Coil Voltage: 24VDC
- Contact Current: 8A
- Product Range: RPII/2 Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Nickel Oxide
- Coil Resistance: 1.1kohm
- SVHC: No SVHC (12-Jan-2017)
- Approval Category: IP67
- Coil Current: 21.8mA
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 8A
- Contact Current DC Max: 8A
- Contact Current Max: 8A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 43.2V
- DC Coil Power: 500mW
- External Depth: 25.5mm
- External Height: 29mm
- External Length / Height: 29mm
- External Width: 12.6mm
- Nom Operating Power: 500mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 8ms
- Relay Type: Power - General Purpose
- Release Time: 2ms
