RP73D2A187KBTG Res, 187K, 0.1%, 0.125W, 0805, Thin Film HOLSWORTHY - Te Connectivity

HOLSWORTHY - TE CONNECTIVITYUGS :RP73D2A187KBTG Code de commande:1502413

Prix:
Prix ​​promotionnel€2,61

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

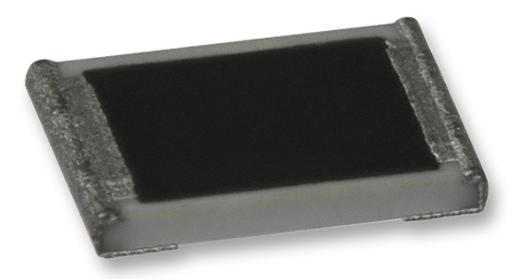

HOLSWORTHY - TE CONNECTIVITY - RP73D2A187KBTG - SMD Chip Resistor, 187 kohm, ± 0.1%, 125 mW, 0805 [2012 Metric], Thin Film, Precision

  • Resistor Case Style: 0805 [2012 Metric]
  • Resistance: 187kohm
  • Product Range: RP73 Series
  • Voltage Rating: 150V
  • Resistor Element Material: Thin Film
  • Power Rating: 125mW
  • Resistance Tolerance: ± 0.1%
  • Temperature Coefficient: ± 15ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 0.4mm
  • External Length / Height: 2mm
  • External Width: 1.25mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Resistor Mounting: Surface Mount Device
