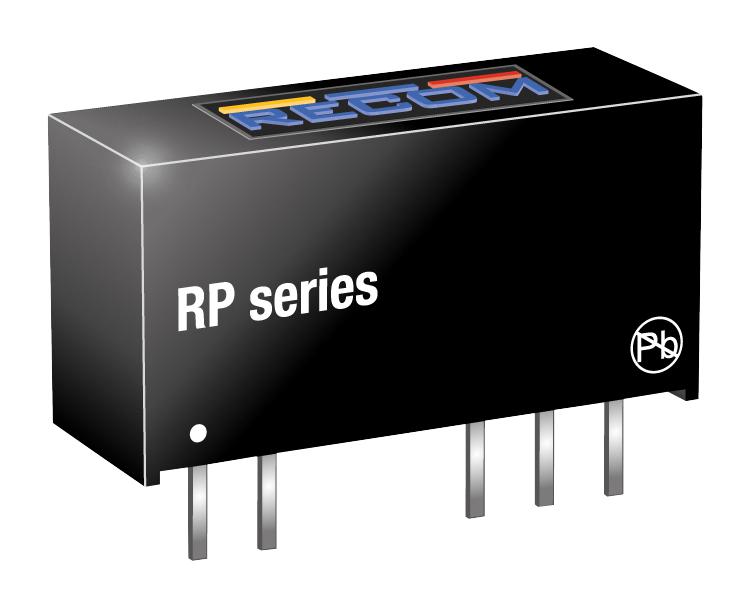

RECOM POWER - RP-1205S - Isolated Through Hole DC/DC Converter, Medical, 1:1, 1 W, 1 Output, 5 V, 200 mA
- No. of Outputs: 1 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 200mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: RP Series
- Input Voltage DC Min: 10.8V
- Input Voltage DC Max: 13.2V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 7.05mm
- Height: 10.2mm
- Depth: 19.65mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN 60601
- Approvals & Standards: IEC 60601
- Isolation Voltage: 5.2kV
- No. of Outputs: 1Outputs
- Power Rating: 1W
