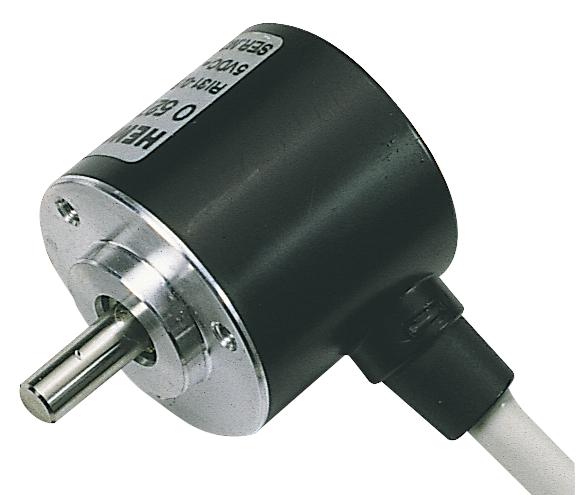

RI32-0/360ER.14KB ENCODER, ROTARY HENGSTLER

HENGSTLERUGS :RI32-0/360ER.14KB Code de commande:615973

Prix:
Prix ​​promotionnel€296,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seul 1 produit disponible

Documents et téléchargements

description

HENGSTLER - RI32-0/360ER.14KB - Rotary Encoder, Optical, Incremental, 360 PPR, 0 Detents, Horizontal, Without Push Switch

  • Supply Voltage Min: 10V
  • Supply Voltage Max: 30V
  • No. of Channels: 3Channels
  • Rotational Speed Max: 4000rpm
  • Product Range: -
  • SVHC: No SVHC (07-Jul-2017)
  • Body Diameter: 30mm
  • Connector Type: Cable
  • Current Consumption: 30mA
  • Encoder Resolution: 360
  • External Length / Height: 27mm
  • Lead Length: 1.5m
  • Load Current: 10mA
  • No. of Pulses Per Revolution: 360
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -10°C
  • Operating Temperature Range: -10°C to +60°C
  • Pulse Output Count: 360
  • Rotational Speed: 4000rpm
  • Shaft Diameter: 5mm
  • Shaft Length: 12.5mm
  • Torque: 0.00005N-m
  • Type: Incremental Encoder
