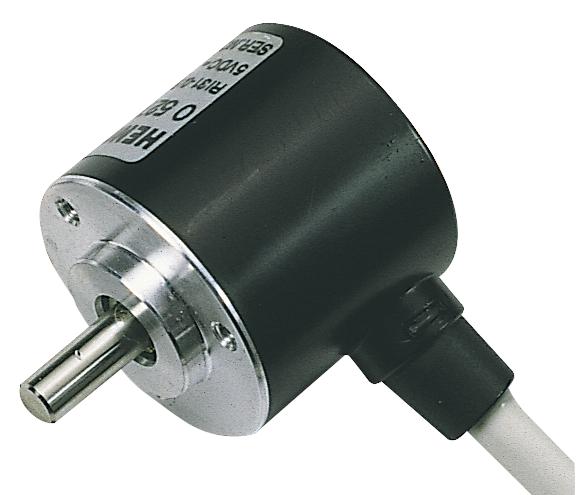

HENGSTLER - RI32-0/360AR.14KB - Rotary Encoder, Optical, Incremental, 360 PPR, 0 Detents, Horizontal, Without Push Switch
- Supply Voltage Min: -
- Supply Voltage Max: 5V
- No. of Channels: 3Channels
- Rotational Speed Max: 4000rpm
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Body Diameter: 30mm
- Connector Type: Cable
- Current Consumption: 30mA
- Encoder Resolution: 360
- External Length / Height: 27mm
- Lead Length: 1.5m
- Load Current: 10mA
- No. of Pulses Per Revolution: 360
- Operating Temperature Max: 60°C
- Operating Temperature Min: -10°C
- Operating Temperature Range: -10°C to +60°C
- Output Voltage Max: 2.5V
- Output Voltage Min: 0.5V
- Pulse Output Count: 360
- Rotational Speed: 4000rpm
- Shaft Diameter: 5mm
- Shaft Length: 12.5mm
- Torque: 0.00005N-m
- Type: Incremental Encoder
