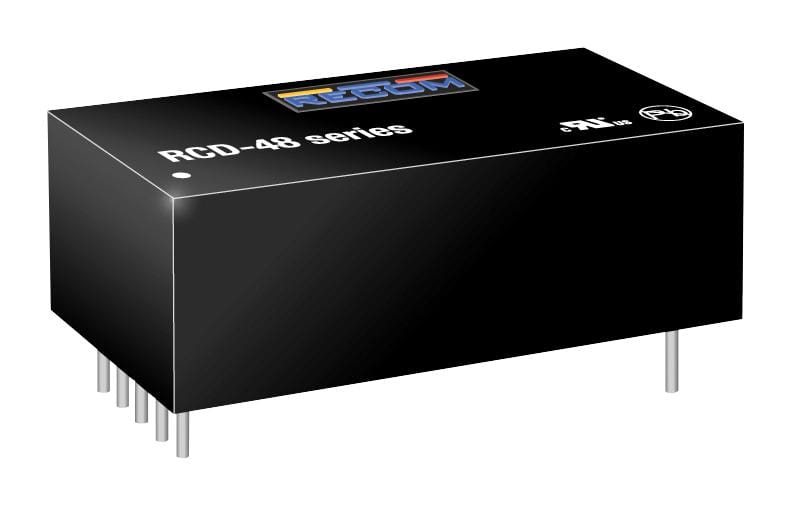

RECOM POWER - RCD-48-0.70/W - LED Driver DC/DC Converter, ITE, RCD-48 Series, 39.2 W, 56 V, 700 mA, Analogue, PWM
- Product Range: RCD-48 Series
- Output Power Max: 39.2W
- Output Voltage Max: 56V
- Output Current: 700mA
- Dimming Control Type: Analogue, PWM
- DC / DC Converter Mounting: Chassis
- DC / DC Converter Output Type: Adjustable
- Input Voltage Min: 9V
- Input Voltage Max: 60V
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN, UL
- Approvals & Standards: CSA, IEC 60601, UL
- Efficiency: 96%
- External Depth: 16.65mm
- External Length / Height: 11.1mm
- External Width: 32.6mm
- Frequency Max: 1000kHz
- Frequency Min: 50kHz
- Input Voltage: 48VDC
- LED Driver Mode: Constant Current
- Lead Length: 103mm
- No. of Channels: 1Channels
- Operating Temperature Max: 75°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +75°C
- Output Current Max: 700mA
- Output Current Min: 0mA
- Output Power: 70W
- Output Ripple and Noise Voltage pk-pk: 300mV
- Output Voltage Min: 2VDC
- Power Consumption: 1.5W
- Protection Type: Short Circuit Protection
- Termination Style: Flying Leads
- Weight: 16g
