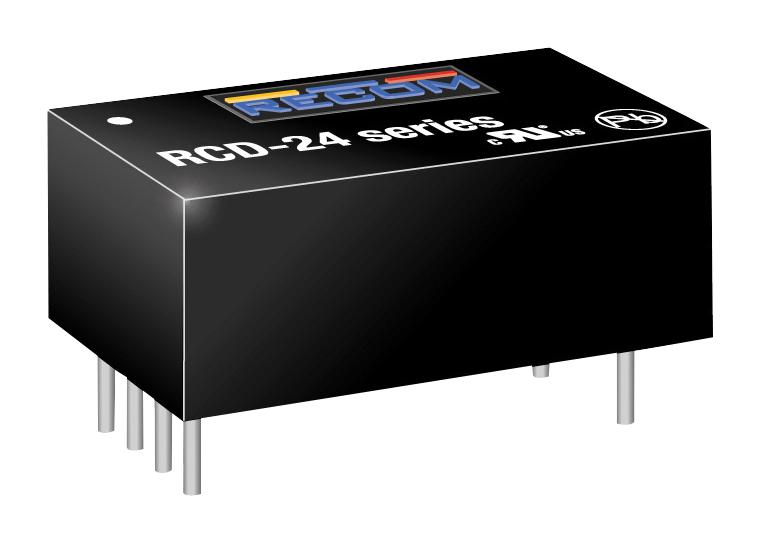

RCD-24-1.20 LED Driver, DC-DC, CC, 1.2A, 33V RECOM Power

RECOM POWERUGS :RCD-24-1.20 Code de commande:1793229

Prix:
Prix ​​promotionnel€25,83

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (92 unité)

Documents et téléchargements

description

RECOM POWER - RCD-24-1.20 - LED Driver DC/DC Converter, ITE, RCD-24 Series, 37.2 W, 31 V, 1.2 A, Analogue, Digital

  • Product Range: RCD-24 Series
  • Output Power Max: 37.2W
  • Output Voltage Max: 31V
  • Output Current: 1.2A
  • Dimming Control Type: Analogue, Digital
  • DC / DC Converter Mounting: Through Hole
  • DC / DC Converter Output Type: Adjustable
  • Input Voltage Min: 6V
  • Input Voltage Max: 36V
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: UL
  • Approvals & Standards: UL
  • Depth: 8.5mm
  • Efficiency Max: 96%
  • External Depth: 8.5mm
  • External Length / Height: 22.1mm
  • External Width: 12.55mm
  • LED Driver Mode: Constant Current
  • Length: 22.1mm
  • No. of Channels: 1Channels
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +65°C
  • Output Voltage Min: 3V
  • Power Supply Mounting: Through Hole
  • Termination Style: Solder
  • Width: 12.55mm
